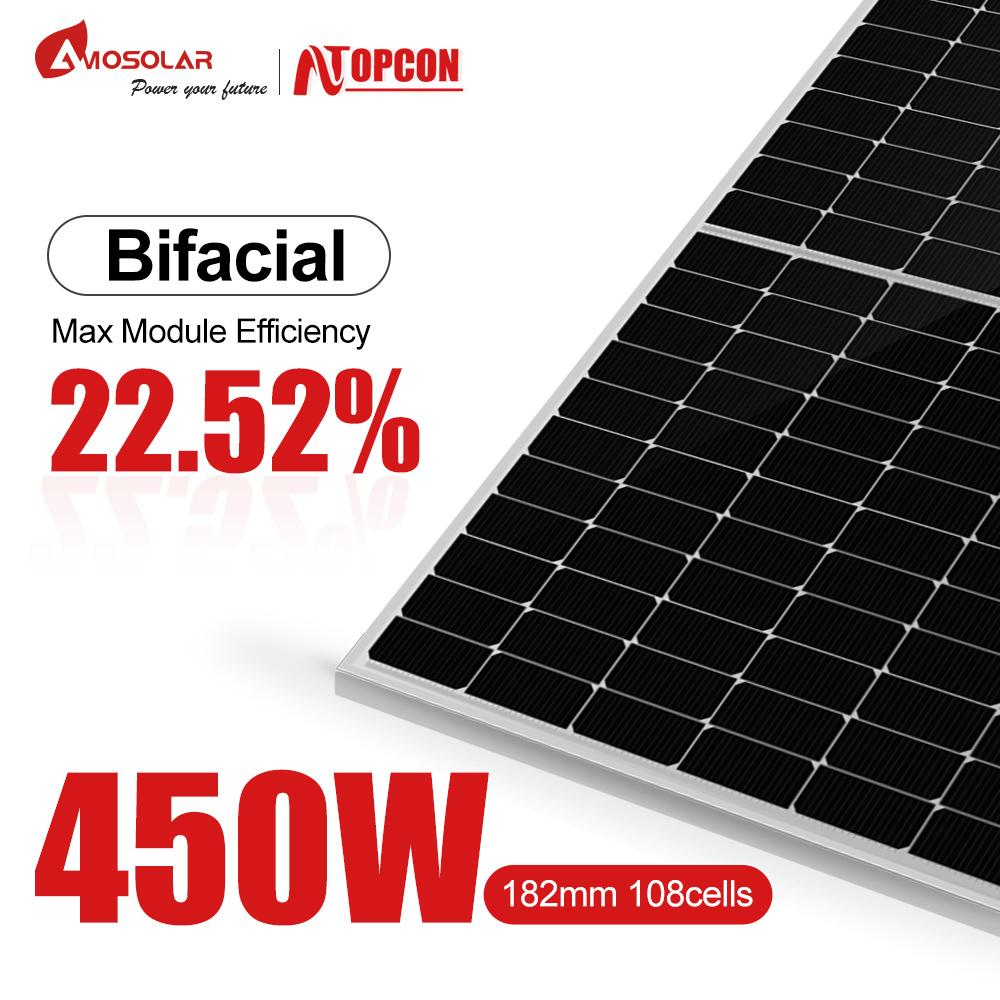

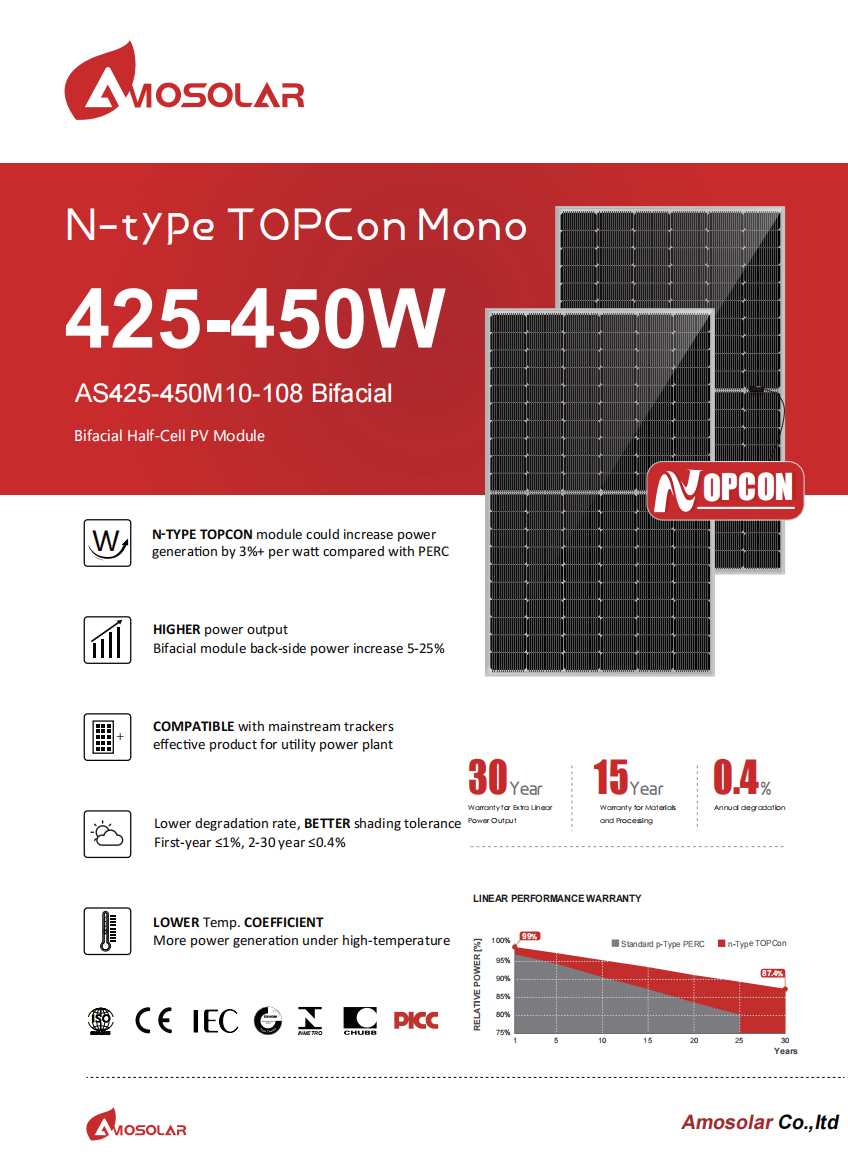

AS425-450M10-108 Bifacial
| Cell | N-type TOPCon Mono |
| No.of cells | 108(6x18) |
| Cable Length | 300mm(+)/300mm(-) |
|
Cable Cross Section Size
|
4mm²(IEC)
|
|
Junction Box
|
IP68
|
|
Connector
|
MC4 Compatible
|
|
Weight
|
24.2kgs±3%
|
|
Cells Type
|
Mono 182x91mm
|
|
Dimension(LxWxT)
|
1722±2mmx1134±2mmx30/35±1mm
|
|
Packaging
|
36pcs/pallet,360pcs/20GP;936pcs/40HQ(30mm) 31pcs/pallet,306pcs/20GP;806pcs/40HQ(35mm)
|
425W-450W Half Cells Mono Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.

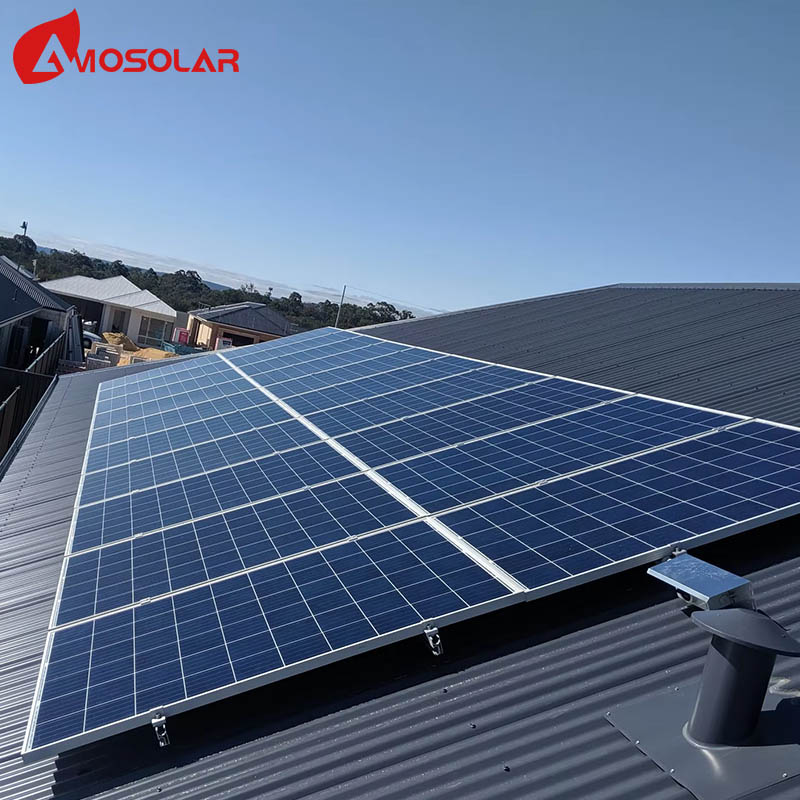

Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
| Module Type | AS425M10-108 | AS430M10-108 | AS435M10-108 | AS440M10-108 | AS445M10-108 | AS450M10-108 |
| Maximum Power(Pmax/W) | 425 | 430 | 435 | 440 | 445 | 450 |
| Open Circuit Voltage(Voc/V) | 39.23 | 39.23 | 39.63 | 39.63 | 39.63 | 40.23 |
| Short Circuit Current(Isc/A) | 13.77 | 13.84 | 13.91 | 13.98 | 14.05 | 14.12 |
| Voltage at Maximum Power(Vmp/V) | 32.90 | 33.08 | 33.26 | 33.44 | 33.44 | 33.44 |
| Current at Maximum Power(Imp/A) | 12.92 | 13.00 | 13.08 | 13.16 | 13.24 | 13.32 |
| Module Efficiency(%) | 21.27 | 21.52 | 21.77 | 22.02 | 22.27 | 22.52 |
AS410-430M10-108 Bifacial Cell N-type TOPCon Mono No.of cells 108(6x18) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet,360pcs/20GP;936pcs/40HQ(30mm) 31pcs/pallet,306pcs/20GP;806pcs/40HQ(35mm)
Learn More
AS420-440M10-108 Bifacial Cell N-type TOPCon Mono No.of cells 108(6x18) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet,360pcs/20GP;936pcs/40HQ(30mm) 31pcs/pallet,306pcs/20GP;806pcs/40HQ(35mm)
Learn More
AS380-410M10-108 Cell Mono Rated Maximum Power 410W Maximum Efficiency 21.00% Weight 21.0kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx35±1mm Packaging 36pcs/pallet, 936pcs/40HQ container
Learn More
AS580-615G12-120 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 615W Maximum Efficiency 21.73% Weight 30.9kgs±3% Cells Type Mono 210x105mm Dimension (LxW×T) 2172±2mmx1303±2mmx35±1mm Packaging 31pcs/pallet, 558pcs/40HQ container
Learn More
TSM-DEG19RC.20 560-580W Cell Arrangement 132(22X 6) Junction Box IP68 rated Weight 33.7KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 PV Size 1284 x1134x 30mm Packaging 36pcs/pallet 720pcs/40HQ container
Learn More
AS560-590M10-144B Cell Mono Rated Maximum Power 590W Maximum Efficiency 22.84% Weight 32.3kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2278±2mmx1134±2mmx30±1m Packaging 36pcs/pallet, 720pcs/40HQ container
Learn More
AS485-505M10-108 Cell N-type TOPCon Mono No.of cells 108(2x54) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24kgs±3% Cells Type Mono 182x9mm Dimension(LxWxT) 1961±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 24 pcs/stack,;864pcs/40HQ(30mm) 31pcs/pallet, 24 pcs/stack,;744pcs/40HQ(35mm)
Learn More
LR5-54HTB 415~435M Cell Arrangement 108(6 X 18) Junction Box IP68, 3 diodes Weight 20.8KG Cable Length +400,-200mm/+1400mm Cable Size 4 mm2 (lEC) PV Size 1722x1134x30mm Packaging 36pcs/pallet 936pcs/40HQ container
Learn More
