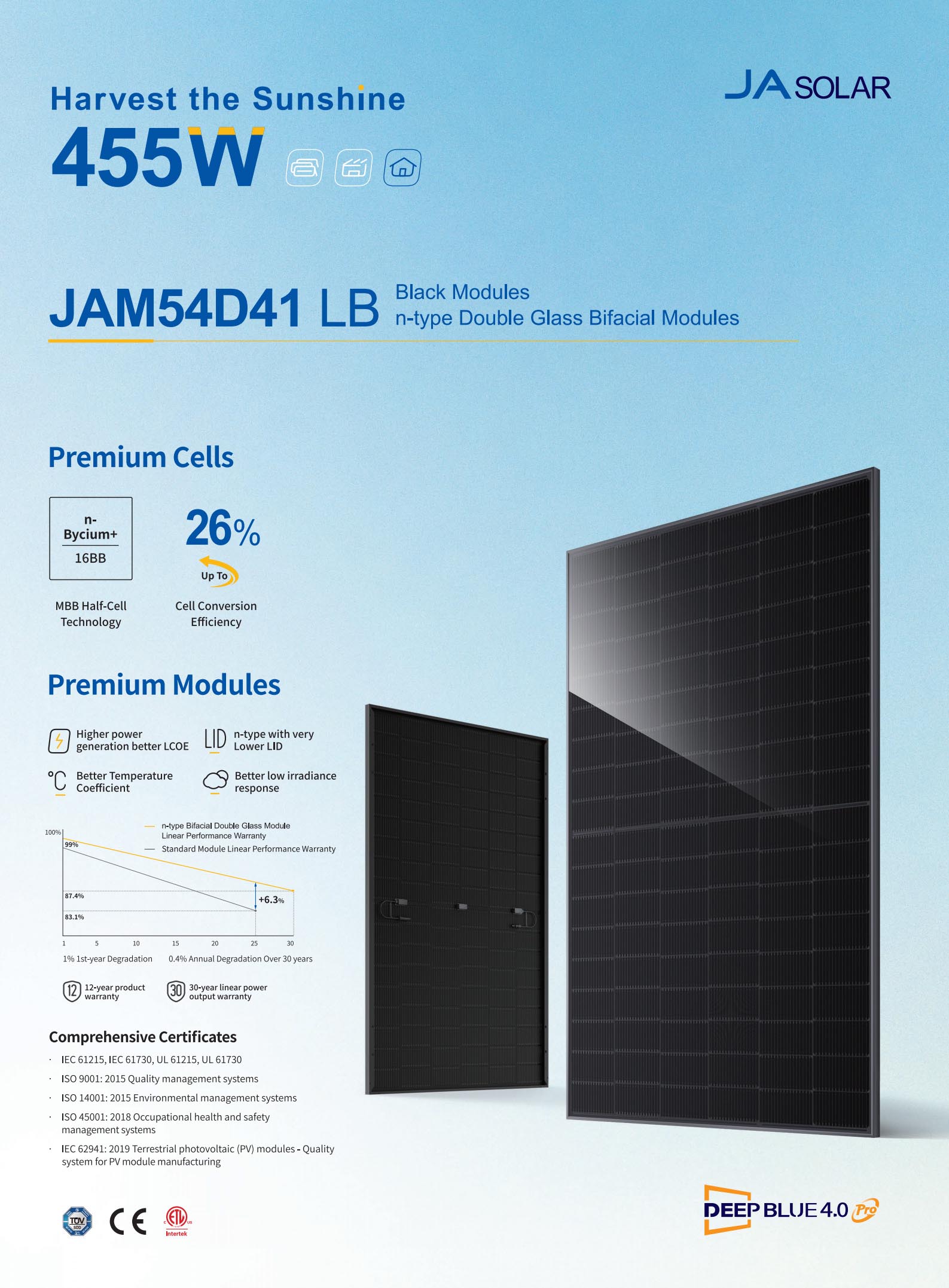

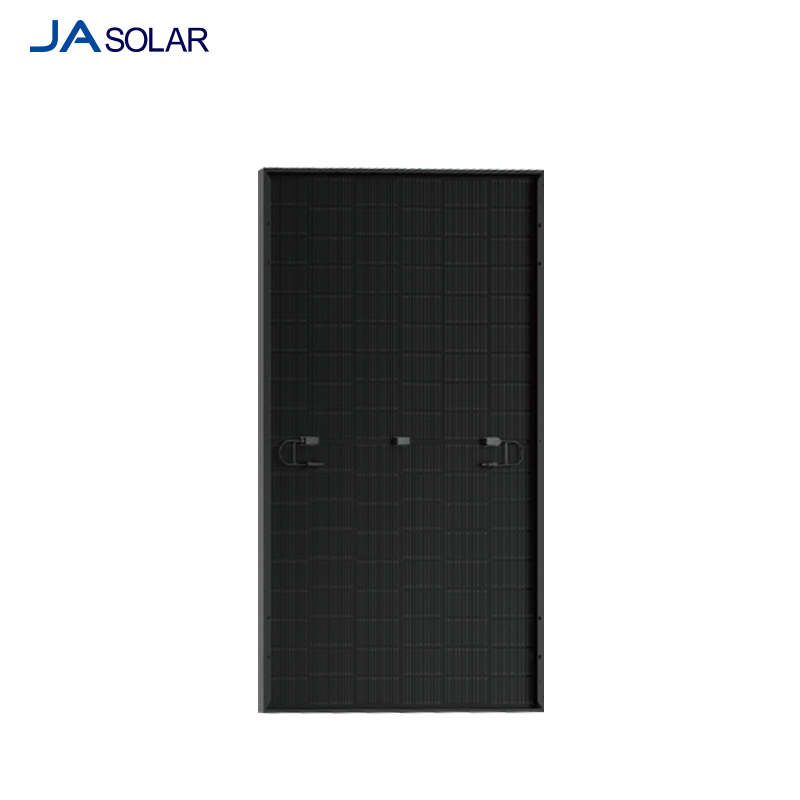

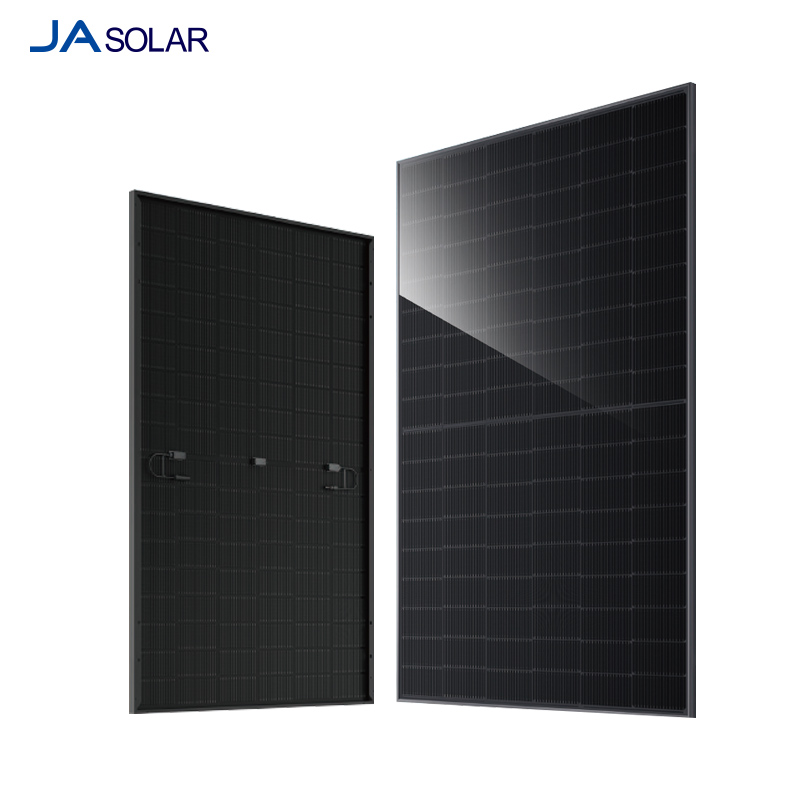

JAM54D41 430-455/LB
Junction Box : IP68, 3 diodes
Weight: 22KG
Cable Length : 300mm(+) / 400mm(-)
Cable Size : 4 mm2 (IEC), 12 AWG (UL)
PV Size: 1762X 1134 X 30 mm
Packaging: 36 pcs / pallet 936pcs / 40HQ container
Electrical Performance Parameters (STC Test)
| Model | JAM54D40430/LB | JAM54D40435/LB | JAM54D40440/LB | JAM54D40445/LB | JAM54D40450/LB | JAM54D40455/LB |
| Rated Maximum Power at STC | 430W | 435W | 440W | 445W | 450W | 455W |
| Open Circuit Voltage (Voc) | 38.50 | 38.70 | 38.90 | 50.02 | 39.10 | 39.50 |
| Maximum Power Voltage (Vmp) | 32.12 | 32.29 | 32.47 | 32.65 | 32.82 | 33.00 |
| Short Circuit Current (Isc) | 14.14 | 14.23 | 14.31 | 14.40 | 14.48 | 14.56 |
| Maximum Power Current (Imp) | 13.39 | 13.47 | 13.55 | 13.63 | 13.71 | 13.79 |
| PV Module Efficiency (%) | 21.50 | 21.80 | 22.00 | 22.30 | 22.50 | 22.80 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | |||||
CS3W-435-465MS Cell Arrangement : 144 [2 X (12 X 6) ] Junction Box : IP68, 3 bypass diodes Weight: 24.3KG Cable Length : 500 mm (19.7 in) (+) / 350 mm (13.8 in) (-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 2108 X 1048 X 35 mm Packaging: 30 pcs / pallet 660pcs / 40HQ container
Learn More
CS6W-530-555MS Cell Arrangement : 120 [2 X (10 X 6) ] Junction Box : IP68, 3 bypass diodes Weight: 31.0KG Cable Length : 460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 2172 X 1303 X 35 mm Packaging: 31 pcs / pallet 527pcs / 40HQ container
Learn More
CS6W-530-555MS Cell Arrangement : 144 [2 X (12 X 6) ] Junction Box : IP68, 3 bypass diodes Weight: 27.6KG Cable Length : 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 2261 X 1134 X 30 mm Packaging: 35 pcs / pallet 700pcs / 40HQ container
Learn More
JAM72D42 615-640W/LB Cell Arrangement : 144 (24 X 6) Junction Box : IP68, 3 diodes Weight: 34.6KG Cable Length : 300mm(+) / 400mm(-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 2465 X 1052 X 35 mm Packaging: 36 pcs / pallet 576pcs / 40HQ container
Learn More
TSM-NEG9RC.27 415-445W Cell Arrangement : 144 (24 X 6) Junction Box : IP68 rated Weight: 21.0KG Cable Length : N 280mm/P 280mm Cable Size : 4 mm2 PV Size: 1762 ×1134× 30mm Packaging: 36 pcs / pallet 936pcs / 40HQ container
Learn More
TSM-NEG19RC.20 580-605W Cell Arrangement : 150 Junction Box : IP68 rated Weight: 33.7KG Cable Length : N 280mm/P 280mm Cable Size : 4 mm2 PV Size: 2384×1134×30 mm Packaging: 36 pcs / pallet 720pcs / 40HQ container
Learn More
TSM-NEG21C.20 675-700W Cell Arrangement : 132 Junction Box : IP68 rated Weight: 38.3KG Cable Length : 350/280mm Cable Size : 4 mm2 PV Size: 2384 ×1303× 35 mm Packaging: 33 pcs / pallet 594pcs / 40HQ container
Learn More
LR7-72HGD 585~620M Cell Arrangement : 144 (24 X 6) Junction Box : IP68, 3 diodes Weight: 33.5KG Cable Length : +400,-200mm/ ±1400mm Cable Size : 4 mm2 (IEC) PV Size: 2382×1134×30mm Packaging: 36 pcs / pallet 720pcs / 40HQ container
Learn More
