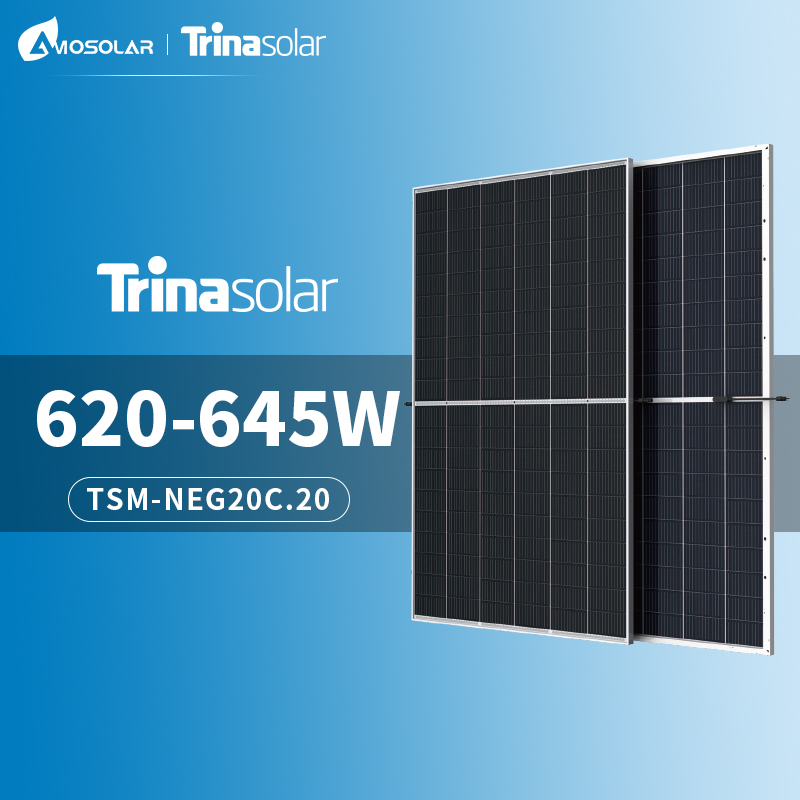

Trina 210 Solar Panel Mono Half Cell 620W 625W 630W 635W 640W 645W  A Grade Solar Panel
Products
Home / SOLAR PANEL / Tier 1 PV Module /

Trina 210 Solar Panel Mono Half Cell 620W 625W 630W 635W 640W 645W A Grade Solar Panel

Photovoitalc Solar Panel
Photovoitalc Solar Panel
Photovoitalc Solar Panel

Trina 210 Solar Panel Mono Half Cell 620W 625W 630W 635W 640W 645W A Grade Solar Panel



TSM-NEG20C.20 620-645W





Cell Arrangement :      120(6×20)

Junction Box :             IP68 rated


Weight:                      34.9KG


Cable Length :             N 280mm/P 280mm


Cable  Size :                4 mm2


PV Size:                      2172 ×1303× 30mm


Packaging:                  26 pcs / pallet  351pcs / 40HQ container






mono a grade solarElectrical Performance Parameters (STC Test)



Model TSM-NEG20C.20 620W TSM-NEG20C.20 625W TSM-NEG20C.20 630W TSM-NEG20C.20 635W TSM-NEG20C.20 640W TSM-NEG20C.20 645W
Rated Maximum Power at STC 620W 625W 530W 635W 640W 645W
Open Circuit Voltage (Voc) 43.20 43.50 43.90 44.20 44.50 44.80
Maximum Power Voltage (Vmp) 36.10 36.40 36.60 36.80 37.00 37.20
Short Circuit Current (Isc) 18.18 18.21 18.24 18.27 18.30 18.33
Maximum Power Current (Imp) 17.16 17.19 17.22 17.26 17.30 17.34
PV Module Efficiency (%) 21.90 22.10 22.30 22.40 22.60 22.80
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5




Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
450W Solar Panel 144

CS3W-435-465MS Cell Arrangement :   144 [2 X (12 X 6) ] Junction Box :            IP68, 3 bypass diodes Weight:                       24.3KG Cable Length :           500 mm (19.7 in) (+) / 350 mm (13.8 in) (-) Cable  Size :               4 mm2 (IEC), 12 AWG (UL) PV Size:                       2108 X 1048 X 35 mm Packaging:                 30 pcs / pallet   660pcs / 40HQ container

Learn More
600W Mono Solar Panel

CS6W-530-555MS   Cell Arrangement :   120 [2 X (10 X 6) ] Junction Box :            IP68, 3 bypass diodes Weight:                       31.0KG Cable Length :           460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) Cable  Size :               4 mm2 (IEC), 12 AWG (UL) PV Size:                       2172 X 1303 X 35 mm Packaging:                 31 pcs / pallet   527pcs / 40HQ container

Learn More
550W Single Solar Panel

CS6W-530-555MS Cell Arrangement :   144 [2 X (12 X 6) ] Junction Box :            IP68, 3 bypass diodes Weight:                       27.6KG Cable Length :           410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) Cable  Size :               4 mm2 (IEC), 12 AWG (UL) PV Size:                       2261 X 1134 X 30 mm Packaging:                 35 pcs / pallet   700pcs / 40HQ container

Learn More
Solar Panels Wholesale China

JAM54D41 430-455/LB   Cell Arrangement :   108 (6 X 18) Junction Box :            IP68, 3 diodes Weight:                      22KG Cable Length :           300mm(+) / 400mm(-) Cable  Size :               4 mm2 (IEC), 12 AWG (UL) PV Size:                     1762X 1134 X 30 mm Packaging:                 36 pcs / pallet   936pcs / 40HQ container

Learn More
Paneles Solares Monocristalinos 640W

JAM72D42 615-640W/LB   Cell Arrangement :   144 (24 X 6) Junction Box :            IP68, 3 diodes Weight:                       34.6KG Cable Length :           300mm(+) / 400mm(-) Cable  Size :               4 mm2 (IEC), 12 AWG (UL) PV Size:                       2465 X 1052 X 35 mm Packaging:                 36 pcs / pallet   576pcs / 40HQ container

Learn More
Photovoitalc Solar Panel

TSM-NEG9RC.27 415-445W   Cell Arrangement :   144 (24 X 6) Junction Box :            IP68 rated Weight:                     21.0KG Cable Length :           N 280mm/P 280mm Cable  Size :               4 mm2 PV Size:                     1762 ×1134× 30mm Packaging:                 36 pcs / pallet  936pcs / 40HQ container

Learn More
Bifacial Mono 182mm  485W 495W 505W Double Glass Cheap Solar Panels

TSM-NEG19RC.20 580-605W   Cell Arrangement :       150 Junction Box :             IP68 rated Weight:                      33.7KG Cable Length :            N 280mm/P 280mm Cable  Size :               4 mm2 PV Size:                     2384×1134×30 mm Packaging:                 36 pcs / pallet   720pcs / 40HQ container

Learn More
Mono A Grade Solar Panels 210MM 480w 490w 500w Home Use Pv Module

TSM-NEG21C.20 675-700W   Cell Arrangement :      132 Junction Box :            IP68 rated Weight:                     38.3KG Cable Length :           350/280mm Cable  Size :               4 mm2 PV Size:                     2384 ×1303× 35 mm Packaging:                  33 pcs / pallet   594pcs / 40HQ container

Learn More
