Gel solar Battery
Reliable Energy Storage Solution To Complement Solar Power System.
| Type: | Lead acid battery |
| Model: |
GEL 2V 500AH |
| Norminal Voltage: | 2V |
| Capacity(Ah): | 500Ah |

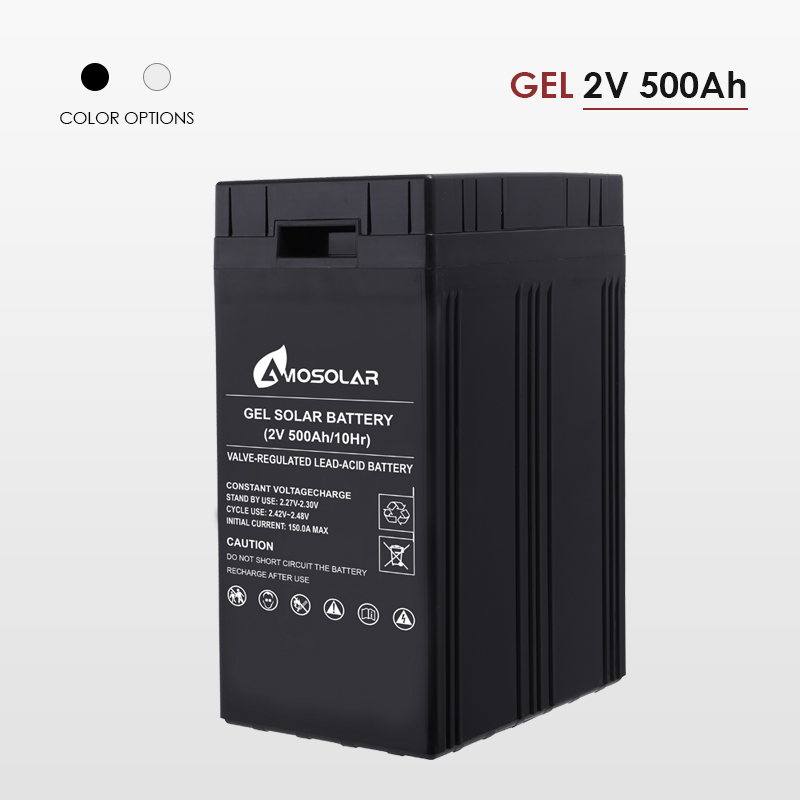

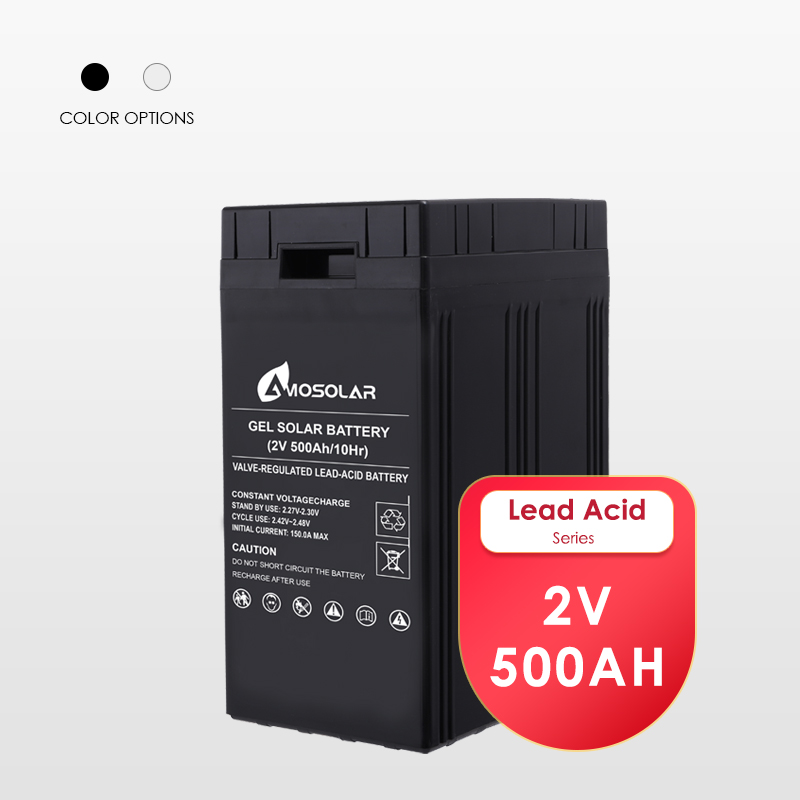

Amosolar high-performance 2V 500Ah Gel deep cycle Battery. Perfect for renewable energy storage and backup systems. Reliable, maintenance-free, and long-lasting.
| Model | GEL2V500Ah | 6-GFM(G)-800Ah | GEL2V1000Ah | 6-GFM(G)-1500Ah |
| Cells Per Unit | 1 | |||
| Voltage Per Unit | 2V | |||
| Capacity |
500Ah@10hr-rate to 1.80V per cell @25℃
|
800Ah@10hr-rate to 1.80V per cell @25℃
|
1000Ah@10hr-rate to 1.80V per cell @25℃
|
1500Ah@10hr-rate to 1.80V per cell @25℃
|
| Internal Resistance | Approx. 1mΩ | Approx. 0.6mΩ | Approx. 0.6mΩ | Approx. 0.75mΩ |
| Terminal | M8 | |||
| Max. Discharge Current | 2500A(5s) | 3200A(5s) | 4000A(5s) | 6000A(5s) |
| Design Life | 10~15 years | |||
| Maximum Charging Current | 100A | 160A | 300A | 300A |
| Float Charging Voltage |
2.27 V~2.3 V @ 25°C Temperature, Compensation: -3mV/°C/Cell
|
|||
| Cycle Use Voltage |
2.42 V~2.48 V @ 25°C, Cycle Use Voltage, Temperature Compensation: -4mV/°C/Cell
|
|||
| Operating Temperature Range |
Discharge: -40°C~60°C, Charge: -20°C~50°C , Storage: -40°C~60°C
|
|||
| Normal Operating Temperature Range | 25°C±5°C | |||
| Self Discharge | Less than 3% at 25°C per month | |||
| Container Material | A.B.S. UL94-HB, UL94-V0 Optional | |||
AS48-RM-100/200 Amosolar lithium battery:6000 Cycles, 20 Years design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AS51-RM-100/200 Capacity(Ah) 100/200 Nominal Voltage 51.2V Weight( Approx) (KG) 45.1kg/81.6kg Dimension(W/D/H)(mm) 480*483*178mm/680*483*178mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
AS370-395M6-120 Cell Mono Rated Maximum Power 395W Maximum Efficiency 21.67% Weight 20.5kgs±3% Cells Type Mono 166x83mm Dimension(LxWxT) 1756±2mmx1038±2mmx35±1mm Packaging 31pcs/pallet, 858pcs/40HQ container
Learn More
AS270-295P-60 Cell Poly Rated Maximum Power 295W Maximum Efficiency 18.13% Junction Box IP 67 Maximum System Voltage 1000V/1500V DC Operating Temperature -40℃ ~ +85℃ Connectors MC4 EVO2/QC4.10-35
Learn More
Amosolar 1KW 3KW 5KW Off Grid Solar System Name Off Grid 5KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V US:110/120V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
AS480-505M10-132 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 550W Maximum Efficiency 21.28% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
Amosolar 200KW PV Solution Name Storage 200KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V ; 380/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
TSM-NEG20C.20 620-645W Cell Arrangement : 120(6×20) Junction Box : IP68 rated Weight: 34.9KG Cable Length : N 280mm/P 280mm Cable Size : 4 mm2 PV Size: 2172 ×1303× 30mm Packaging: 26 pcs / pallet 351pcs / 40HQ container
Learn More
AS435-455M6-144 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 455W Maximum Efficiency 20.93% Weight 28.1kgs±3% Cells Type Mono 166x83mm Dimension(LxWxT) 2094±2mmx1038±2mmx30±1mm Packaging 35pcs/pallet, 770pcs/40HQ container
Learn More
