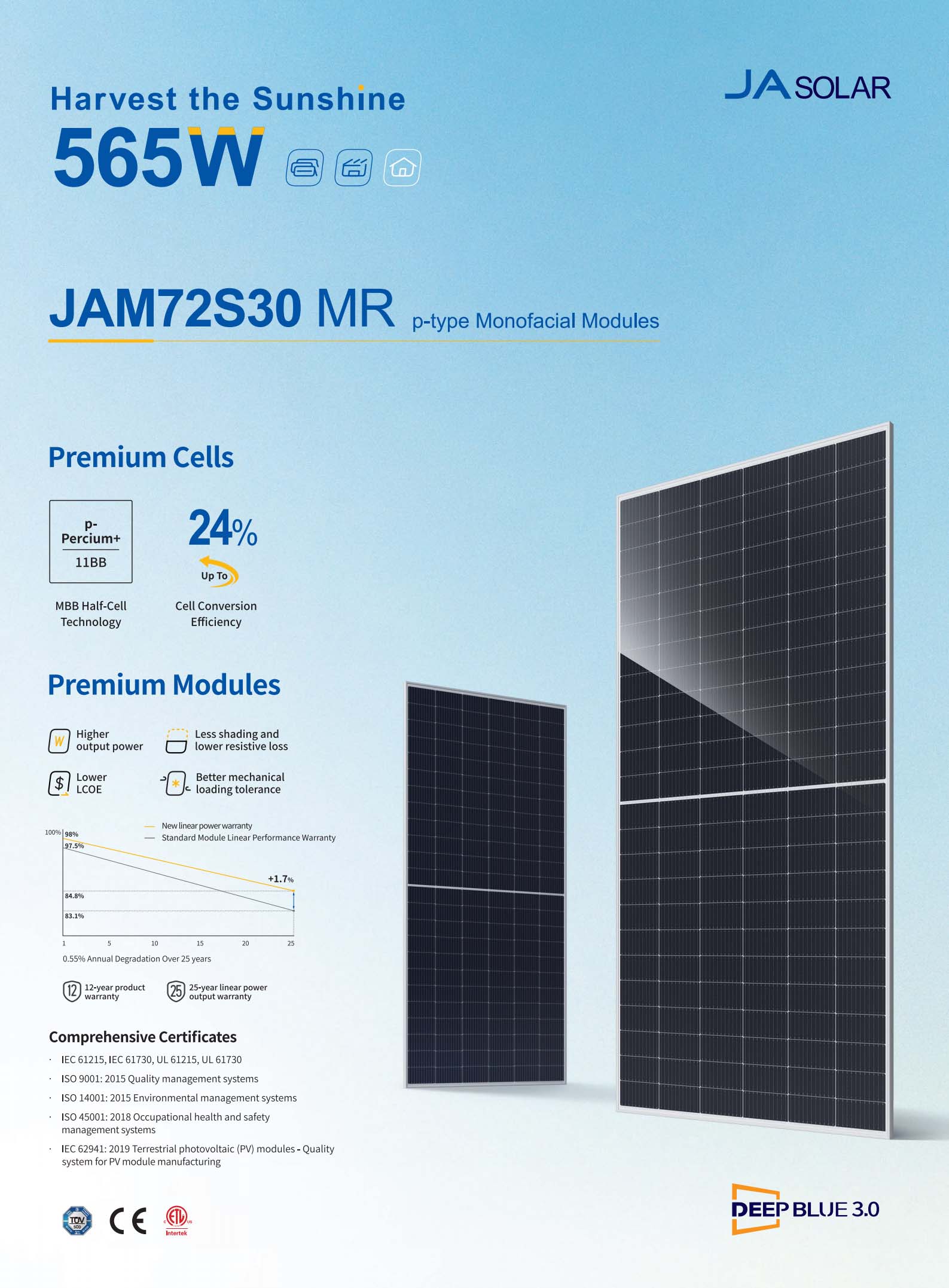

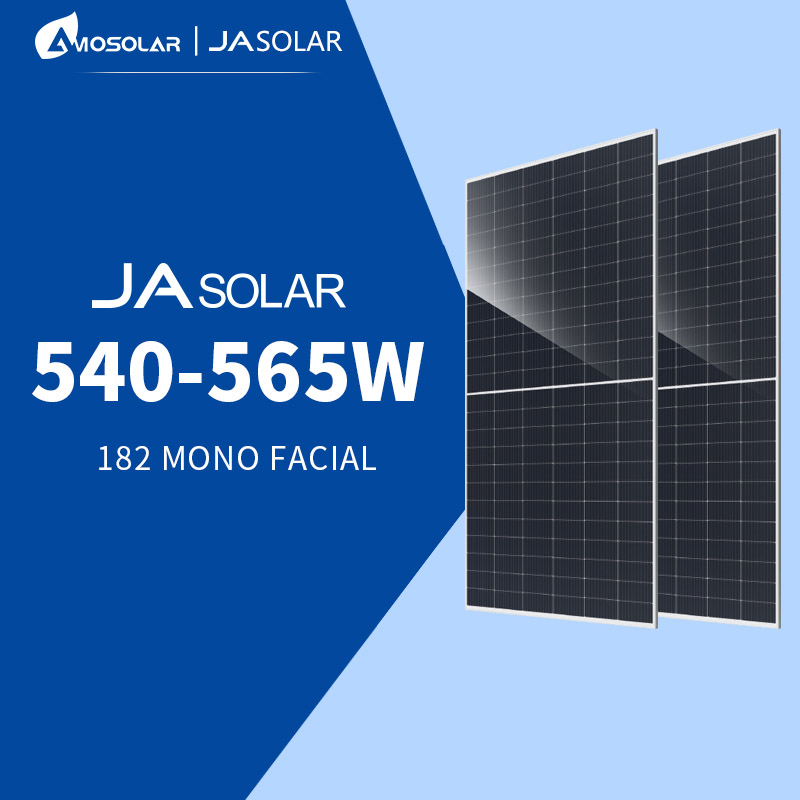

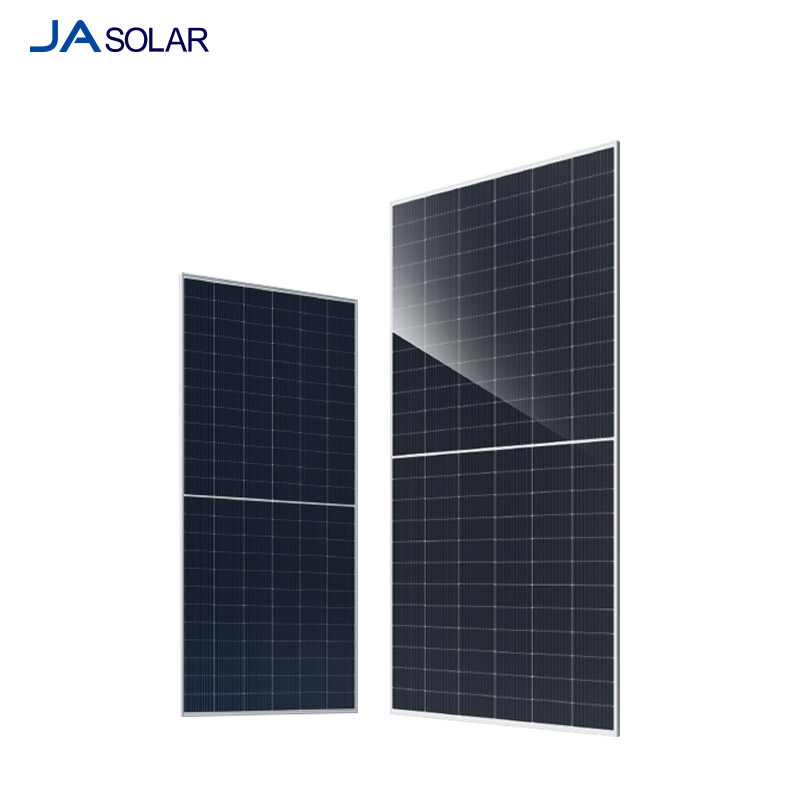

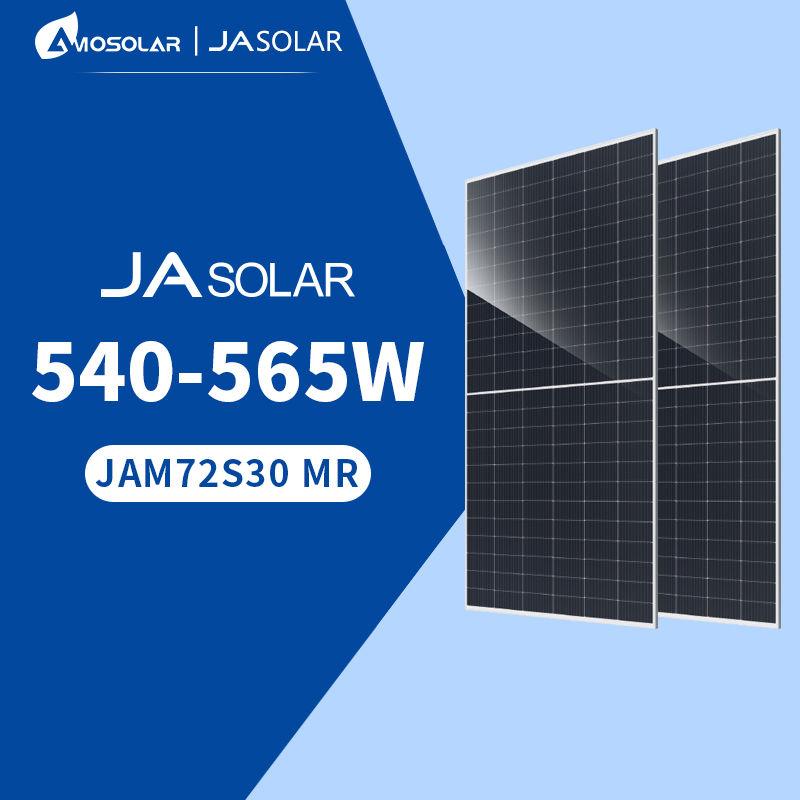

JAM72S30 MR 540-565W
| Cell Arrangement | 144(6 X 24) |
| Junction Box | IP68, 3 diodes |
| Weight | 27.3KG |
| Cable Length | 300mm(+)/400mm(-) |
| Cable Size | 4 mm2 (EC), 12 AWG (UL) |
| PV Size | 2278 X1134X30mm |
| Packaging | 36 pcs/pallet 720pcs/40HQ container |
Electrical Performance Parameters (STC Test)
| Model | JAM72S30540/MR | JAM72S30545/MR | JAM72S30550/MR | JAM72S30555/MR | JAM72S30560/MR | JAM72S30565/MR |
| Rated Maximum Power at STC | 540W | 545W | 550W | 555W | 560W | 560W |
| Open Circuit Voltage (Voc) | 49.60 | 49.75 | 49.90 | 50.02 | 50.15 | 50.28 |
| Maximum Power Voltage (Vmp) | 41.64 | 41.80 | 41.96 | 42.11 | 42.27 | 42.42 |
| Short Circuit Current (Isc) | 13.86 | 13.93 | 14.00 | 14.07 | 14.14 | 14.21 |
| Maximum Power Current (Imp) | 12.97 | 13.04 | 13.11 | 13.18 | 13.25 | 13.32 |
| PV Module Efficiency (%) | 20.90 | 21.10 | 21.30 | 21.50 | 21.70 | 21.90 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | |||||
CS3W-435-465MS Cell Arrangement 144 [2 X(12 X 6) Junction Box IP68, 3 bypass diodes Weight 24.3KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4 mm2 (lEC), 12 AWG (UL) PV Size 2108 X1048 X35 mm Packaging 30 pcs/pallet 660pcs/40HQ container
Learn More
CS6W-530-555MS Cell Arrangement 120 [2 X (10 X 6)] Junction Box IP68, 3 bypass diodes Weight 31.0KG Cable Length 460 mm (18.1 in)(+)/340 mm (13.4 in) (-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2172 X1303 X35 mm Packaging 31 pcs/pallet 527pcs/40HQ container
Learn More
CS6W-530-555MS Cell Arrangement 144 [2X(12 X6)] Junction Box IP68, 3 bypass diodes Weight 27.6KG Cable Length 410 mm (16.1 in) (+)/ 290 mm (11.4 in)(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2261 X 1134 X30 mm Packaging 35pcs/pallet 700pcs /40HQ container
Learn More
JAM54D41 430-455/LB Cell Arrangement 108 (6 X18) Junction Box IP68, 3 diodes Weight 22KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 1762X1134X30 mm Packaging 36 pcs/pallet 936pcs/40HQ container
Learn More
JAM72D42 615-640W/LB Cell Arrangement 144(6 X 24) Junction Box IP68, 3 diodes Weight 34.6KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2465 X1052X35 mm Packaging 36 pcs/pallet 576pcs/40HQ container
Learn More
JAM72S20 445-470/MR Cell Arrangement 144(24 X 6) Junction Box IP68, 3 diodes Weight 28.1KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2112 X1052 X35 mm Packaging 31 pcs/pallet 682pcs/40HQ container
Learn More
JAM72S10 400-420/MR Cell Arrangement 144 (24 X 6) Junction Box IP68, 3 diodes Weight 28.1KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2015 X996 X35 mm Packaging 31 pcs/ pallet 682pcs/40HQ container
Learn More
TSM-NEG9RC.27 415-445W Cell Arrangement 144 (24 X 6) Junction Box IP68 rated Weight 21.0KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 PV Size 1762 x1134x 30mm Packaging 36 pcs/pallet 936pcs/40HQ container
Learn More
