Model Number |
AMO 15K-T2 |
| Capacity(Ah) | 104Ah |
| Max. Charge/Discharge Current(A) | 50A |
| Energy(Kwh) | 15KWh~40Kwh |
| Safety(Pack) | UN38.3,MSDS |
| lPGrade | IP65 |
| Cycle Life | 6000 Cycles |

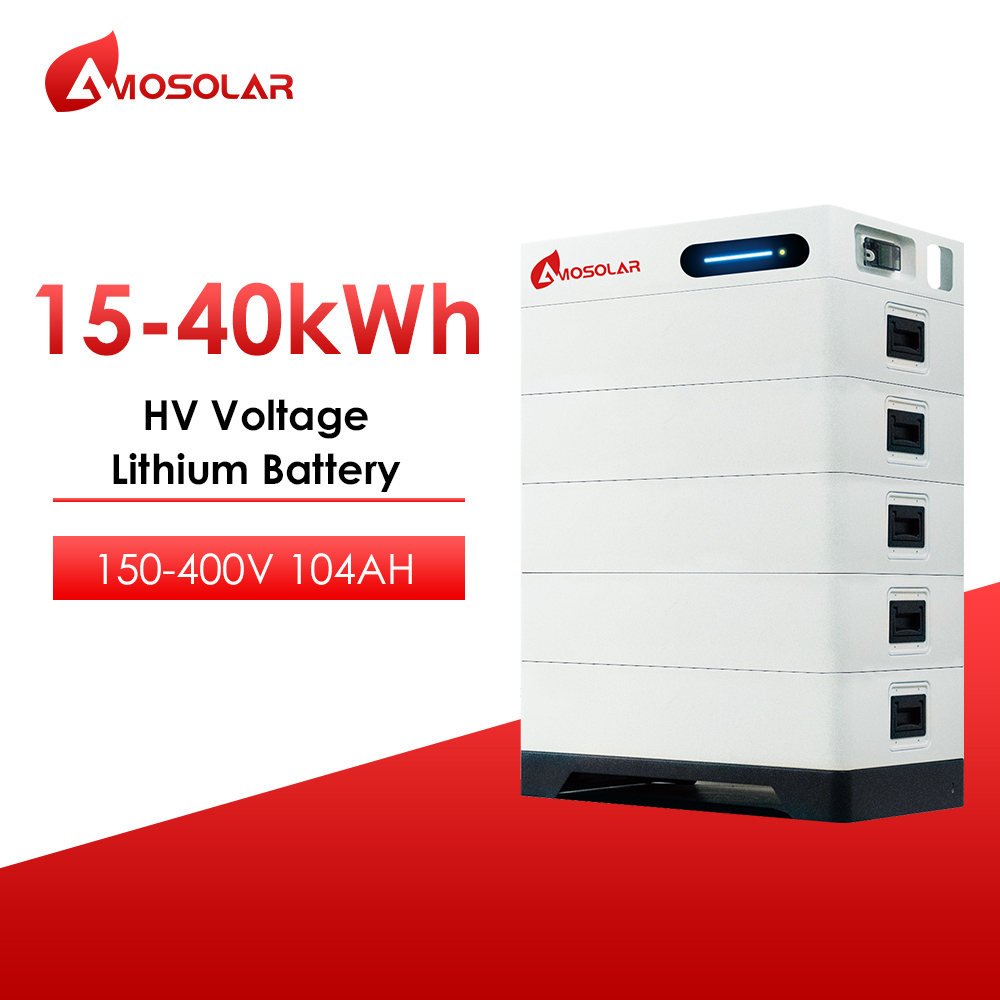

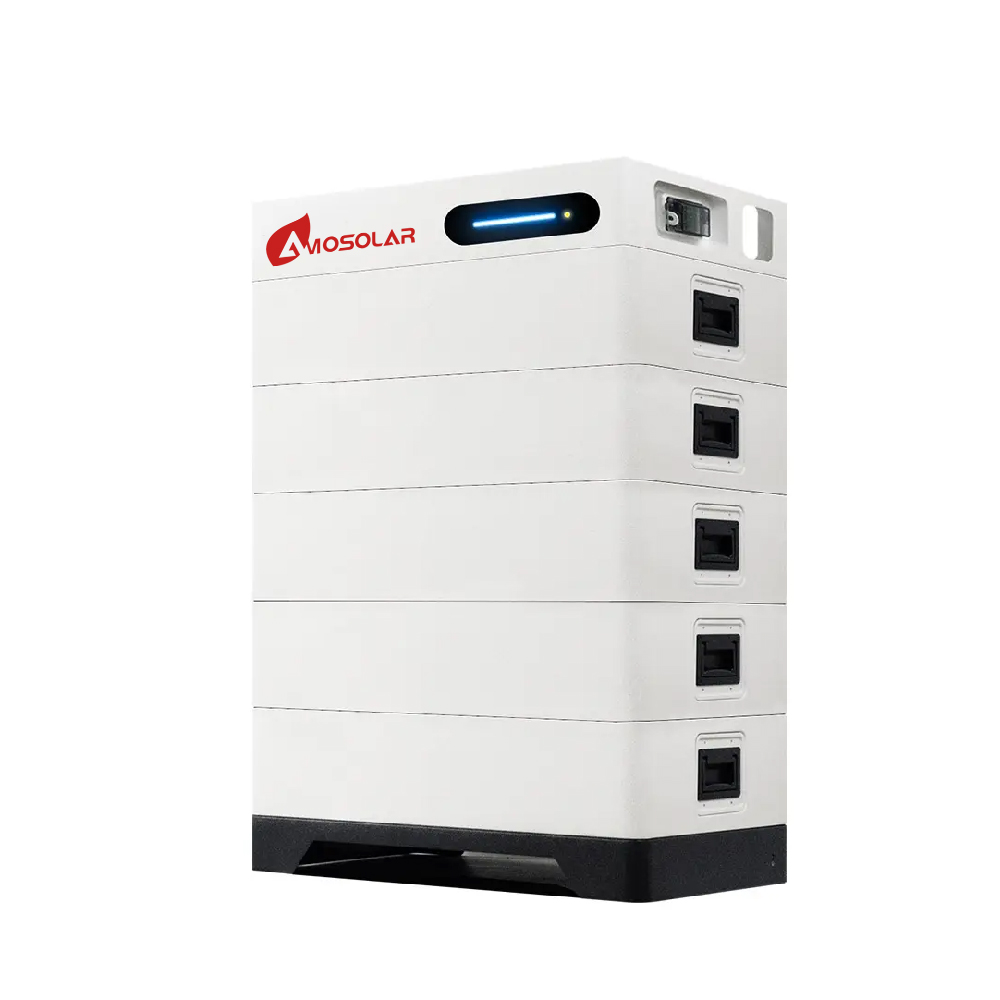

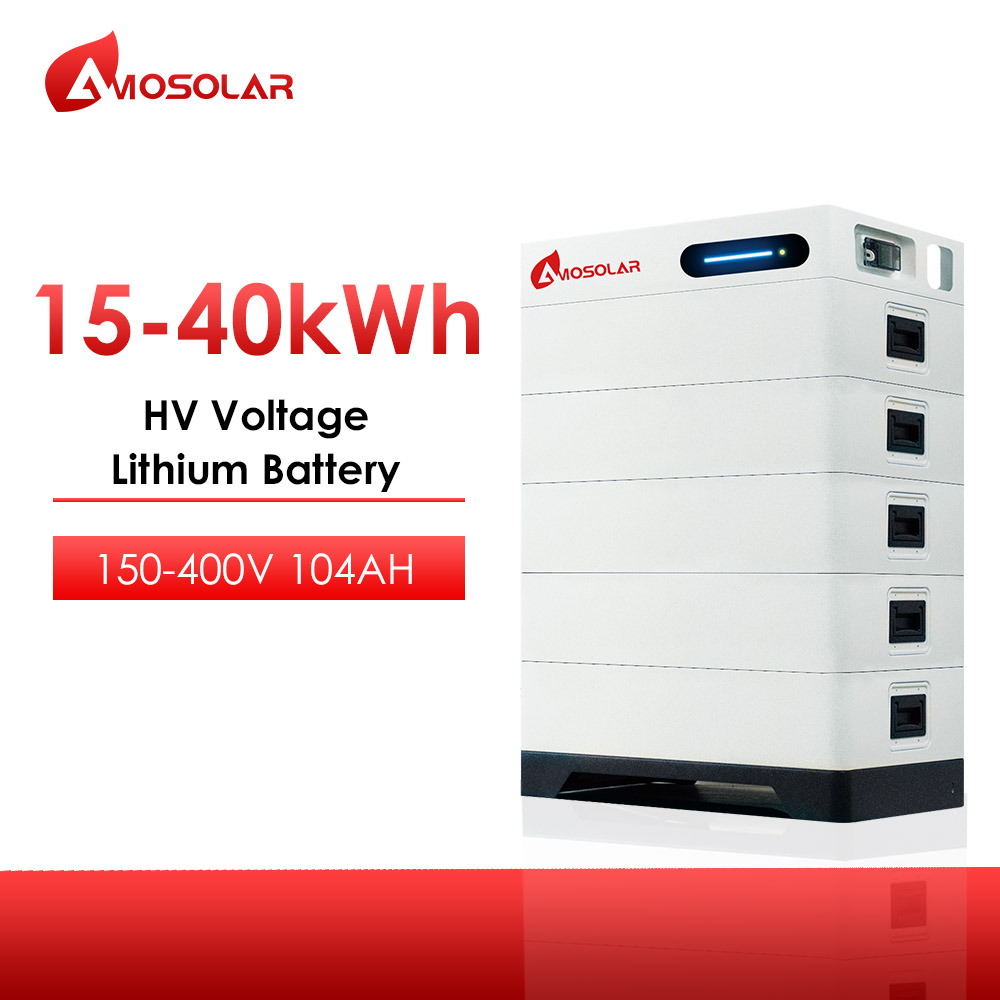

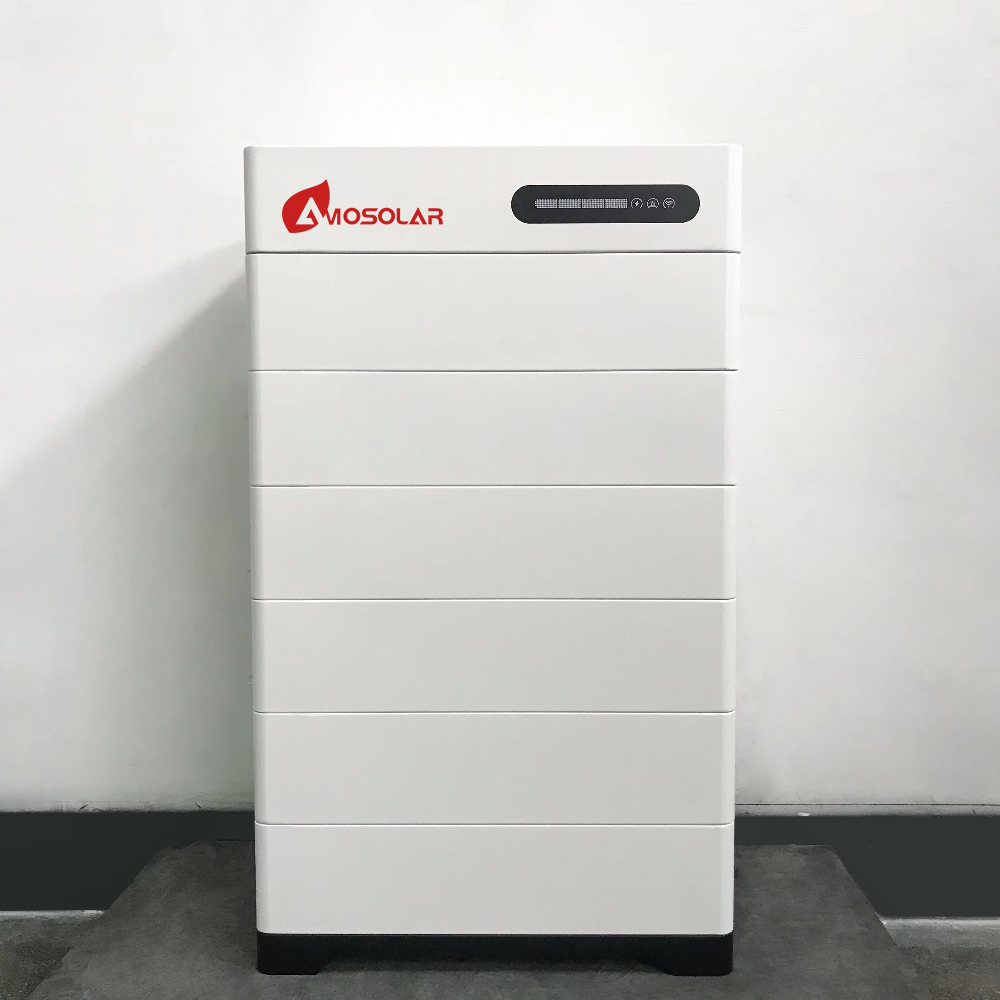

LiFePO4 Solar Battery pack is built-in high quality BMS battery management system, which can manage and monitor cells information, including voltage, current and temperature etc. Also, our BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power in parallel for larger capacity and longer power.

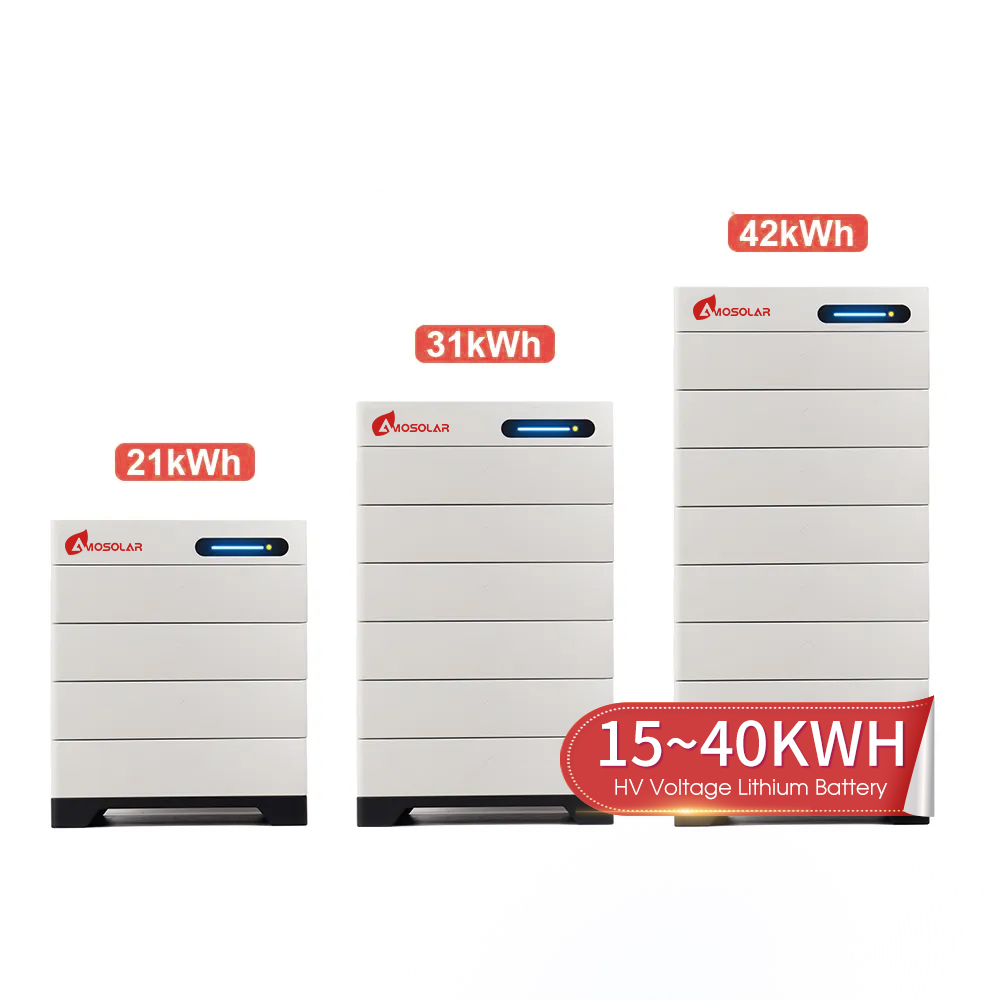

| Model | AMO 15K-T2 | AMO 21K-T2 | AMO 26K-T2 | AMO 31K-T2 | AMO 31K-T2 | AMO 42K-T2 |
| Nominal Voltage | 153.6V | 204.8V | 256V | 307.2V | 358.4V | 409.6V |
| Capacity(Ah) | 104Ah | |||||
| Rated Energy(KWH)/Module | 15.974KWH | 21.299KWH | 26.624KWH | 31.949KWH | 37.274KWH | 42.598KWH |
| Usable Energy(KWH)/Module | 14.377KWH | 19.169KWH | 23.962KWH | 28.754KWH | 33.546KWH | 38.339KWH |
| Max. Charge/Discharge Current(A） | 50A/50A | |||||
| ?Voltage Range(Vdc) | 114.7V-159.7V | 153V-213V | 191.2V-266.2V | 230V-319V | 267.7V-372.7V | 306V-426V |
| Scalability | Up to 1 parallel | |||||
| Communication | RS232-PC, RS485-Inverter, Can-Inverter | |||||
| Cycle Life | 6000 Cycles @25℃, 0.5C, 90%DOD, 60%EOL | |||||
| Weight( Approx) (KG) | 180KG | 233KG | 286KG | 339KG | 392KG | 445KG |
| Dimension(W/D/H)(mm) | 670*396*645 | 670*396*800 | 670*396*955 | 670*396*1110 | 670*396*1265 | 670*396*1420 |
| lnstallation Mode | Stack | |||||
| lPGrade | IP65 | |||||
| Safety(Pack) | UN38.3,MSDS | |||||
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |||||
| Protection | BMS, Breaker | |||||
| Operating Temperature(℃) | Charge: 0℃-55℃; Discharge: -20℃-55℃ | |||||
| Altitude (m) | ≤2000 | |||||
| Humidity | ≤95%(No Condensing) | |||||
| Warranty | 5 Years(25℃) | |||||
| Design Life | 10+Years (25℃/77F) | |||||
AST10-25 Amosolar High-voltage lithium battery:6000 Cycles, 20 Years design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AST10-25 Capacity(Ah) 50Ah Maximum Nominal Voltage 512V Energy(Kwh) 10~25Kwh Charge Temperature(℃) 0~60℃ DisCharge Temperature(℃) -20~60℃ Cycle Life 6000 Cycles
Learn More
Model Number AMO 20K-T2 Capacity(Ah) 52Ah Maximum Nominal Voltage 512V Energy(Kwh) 7.5KWh~20Kwh Max. Charge/Discharge Current(A) 35A lPGrade IP65 Cycle Life 6000 Cycles
Learn More
AMO E3 Amosolar Portable Power Station, TUV CE UN38.3 FCC RoHS,Outdoor Adventure for campers, explorers, RV dwellers, Home&Emergency Backup for professionals and emergency preppers. Brand Amosolar Type Portable Power Station Max.Power 300W
Learn More
AS525-550M10-144 Cell Mono Rated Maximum Power 550W Maximum Efficiency 21.28% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
TSM-NEG21C.20 695-720W Cell Arrangement 132 (22X 6) Junction Box IP68 rated Weight 38.3KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 PV Size 2384 x1303x30mm Packaging 33 pcs/ pallet 594pcs /40HQ container
Learn More
AMO 10.24K-20.48K_LV-T1 Amosolar Low-voltage lithium battery:6000 Cycles,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AMO 10.24K_LV-T1 AMO 15.36K_LV-T1 AMO 20.48K_LV-T1 Capacity(Ah) 200Ah 300Ah 400Ah Maximum Nominal Voltage 51.2V Energy(Kwh) 10.24~20.48Kwh Charge Temperature(℃) 0~55℃ DisCharge Temperature(℃) -20~55℃ Cycle Life 6000 Cycles
Learn More
JAM72S30 MR 540-565W Cell Arrangement 144(6 X 24) Junction Box IP68, 3 diodes Weight 27.3KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (EC), 12 AWG (UL) PV Size 2278 X1134X30mm Packaging 36 pcs/pallet 720pcs/40HQ container
Learn More
AS580-600M10-144 Bifacial Cell Type HJT No. of Cells 182x91 All Dimensions Dimensions 2278x1134x30 mm Weight 32.5±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet;20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
Learn More
