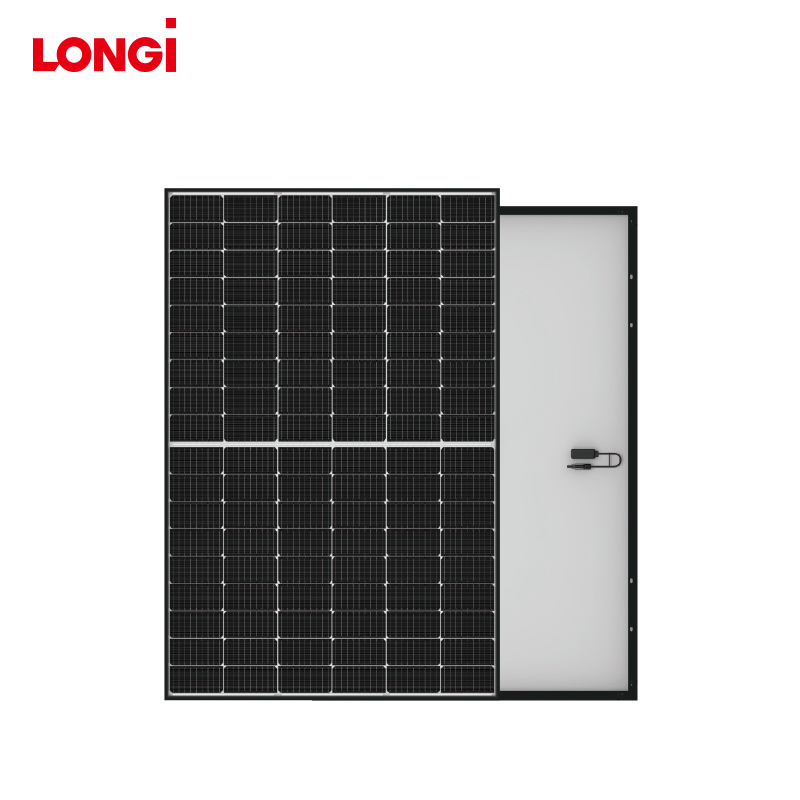

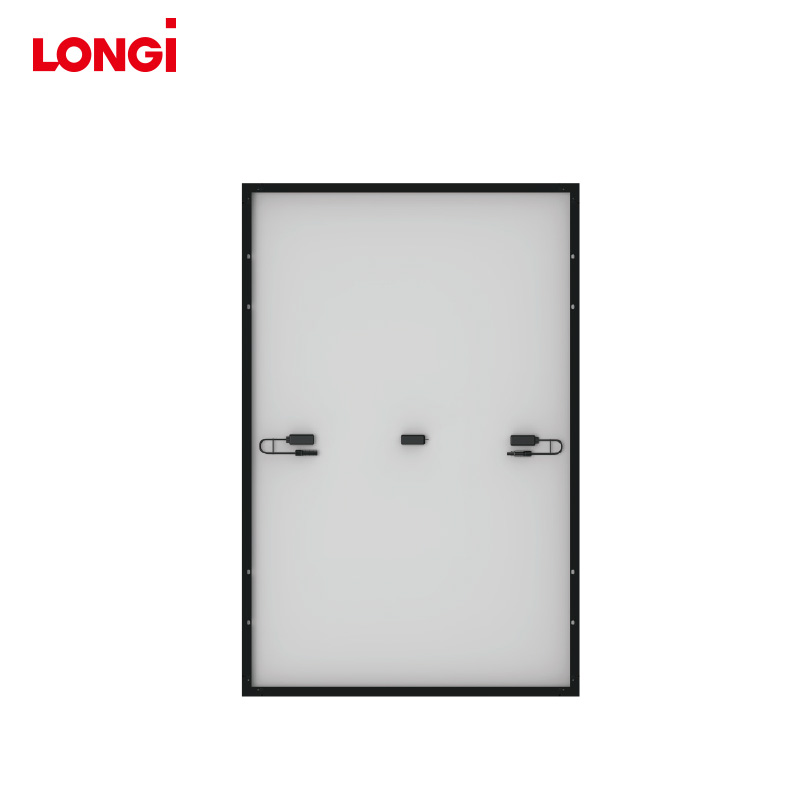

Junction Box : IP68, 3 diodes
Weight: 20.8KG
Cable Length : +400,-200mm/ ±1400mm
Cable Size : 4 mm2 (IEC)
PV Size: 1722×1134×30mm
Packaging: 36 pcs / pallet 936pcs / 40HQ container
Electrical Performance Parameters (STC Test)

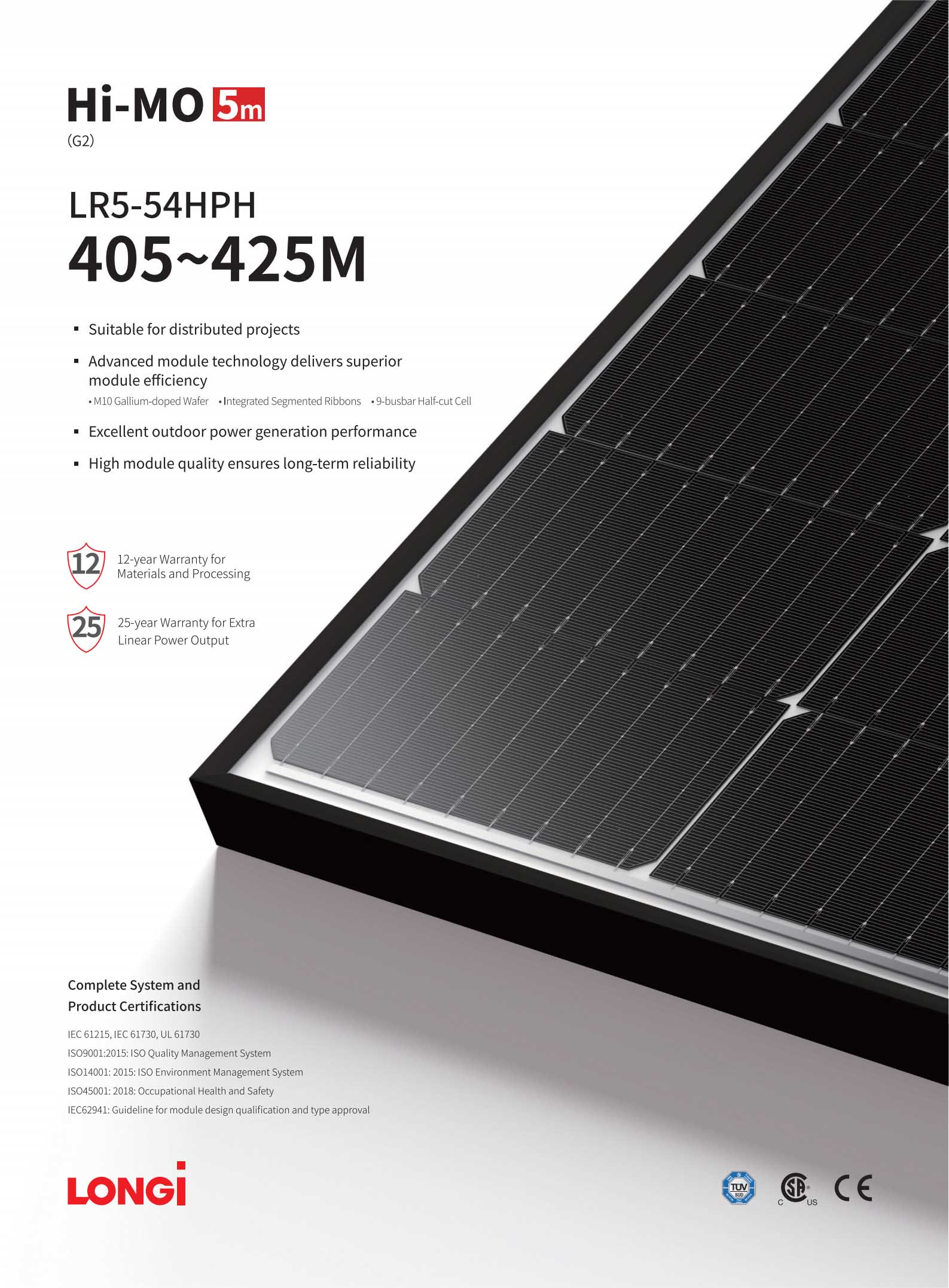

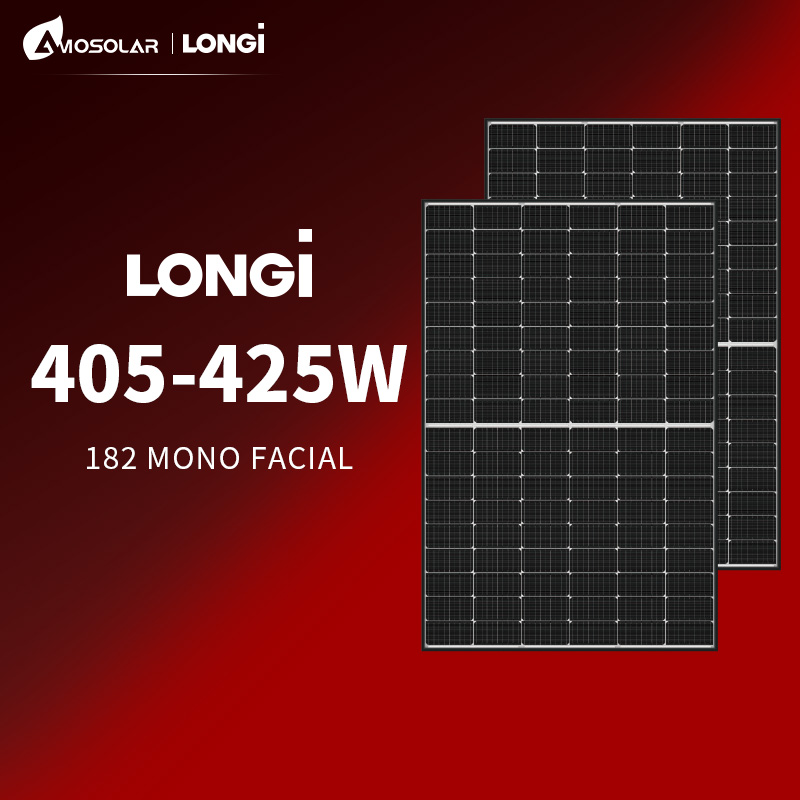

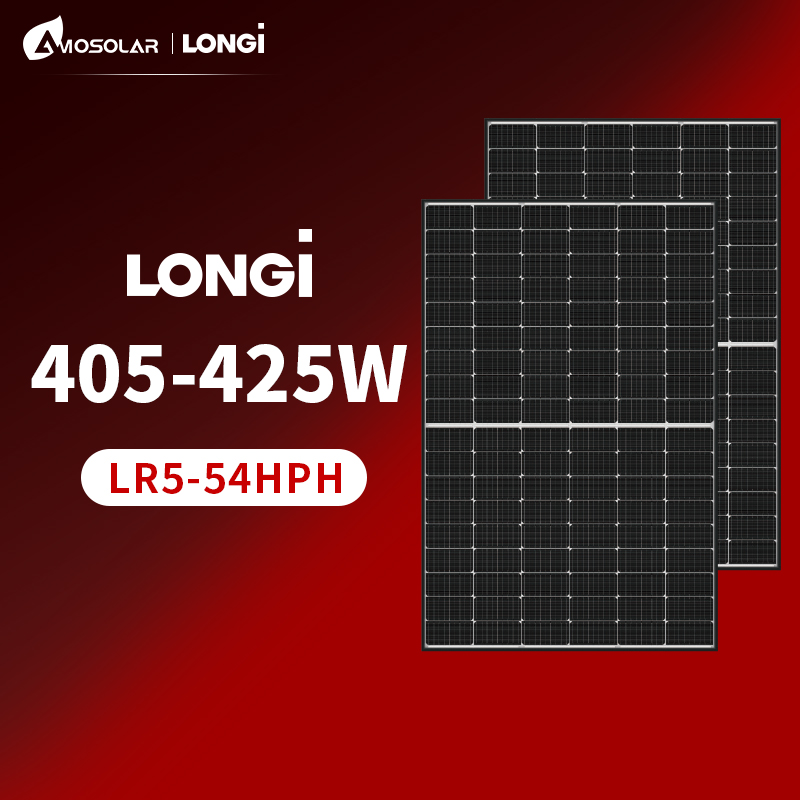

| Model | LR5-54HPH-405M | LR5-54HPH-410M | LR5-54HPH-415M | LR5-54HPH-420M | LR5-54HPH-425M |
| Rated Maximum Power at STC | 405W | 410W | 415W | 420W | 435W |
| Open Circuit Voltage (Voc) | 37.00 | 37.25 | 37.50 | 37.15 | 37.96 |
| Maximum Power Voltage (Vmp) | 31.00 | 31.25 | 31.49 | 31.73 | 31.94 |
| Short Circuit Current (Isc) | 13.83 | 13.88 | 13.94 | 14.01 | 14.08 |
| Maximum Power Current (Imp) | 13.07 | 13.12 | 13.18 | 13.24 | 13.31 |
| PV Module Efficiency (%) | 20.70 | 21.00 | 21.30 | 21.50 | 21.80 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | ||||
CS3W-435-465MS Cell Arrangement : 144 [2 X (12 X 6) ] Junction Box : IP68, 3 bypass diodes Weight: 24.3KG Cable Length : 500 mm (19.7 in) (+) / 350 mm (13.8 in) (-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 2108 X 1048 X 35 mm Packaging: 30 pcs / pallet 660pcs / 40HQ container
Learn More

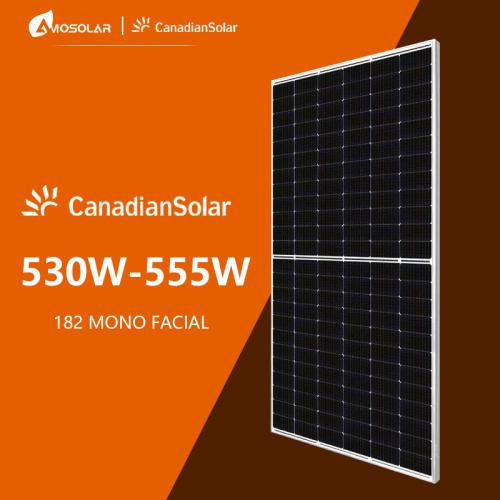

CS6W-530-555MS Cell Arrangement : 120 [2 X (10 X 6) ] Junction Box : IP68, 3 bypass diodes Weight: 31.0KG Cable Length : 460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 2172 X 1303 X 35 mm Packaging: 31 pcs / pallet 527pcs / 40HQ container
Learn More
CS6W-530-555MS Cell Arrangement : 144 [2 X (12 X 6) ] Junction Box : IP68, 3 bypass diodes Weight: 27.6KG Cable Length : 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 2261 X 1134 X 30 mm Packaging: 35 pcs / pallet 700pcs / 40HQ container
Learn More

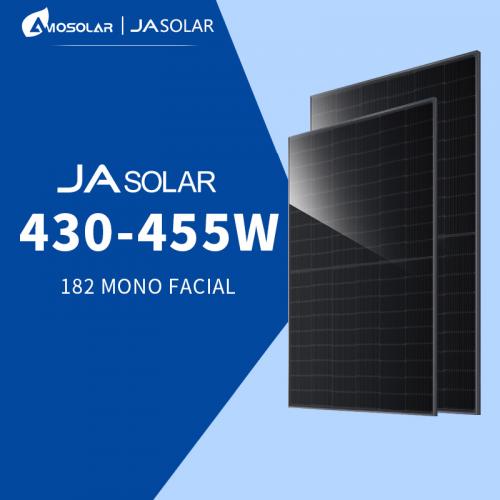

JAM54D41 430-455/LB Cell Arrangement : 108 (6 X 18) Junction Box : IP68, 3 diodes Weight: 22KG Cable Length : 300mm(+) / 400mm(-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 1762X 1134 X 30 mm Packaging: 36 pcs / pallet 936pcs / 40HQ container
Learn More
JAM72D42 615-640W/LB Cell Arrangement : 144 (24 X 6) Junction Box : IP68, 3 diodes Weight: 34.6KG Cable Length : 300mm(+) / 400mm(-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 2465 X 1052 X 35 mm Packaging: 36 pcs / pallet 576pcs / 40HQ container
Learn More

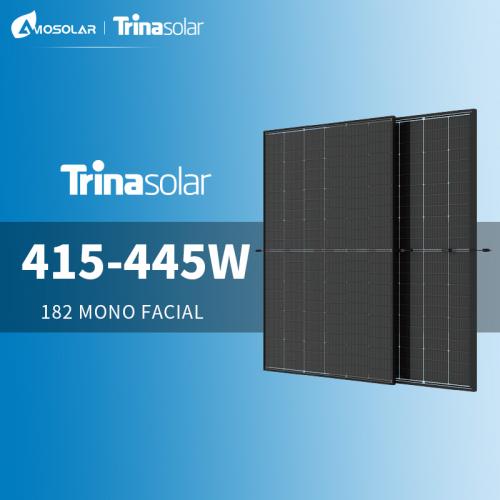

TSM-NEG9RC.27 415-445W Cell Arrangement : 144 (24 X 6) Junction Box : IP68 rated Weight: 21.0KG Cable Length : N 280mm/P 280mm Cable Size : 4 mm2 PV Size: 1762 ×1134× 30mm Packaging: 36 pcs / pallet 936pcs / 40HQ container
Learn More
TSM-NEG19RC.20 580-605W Cell Arrangement : 150 Junction Box : IP68 rated Weight: 33.7KG Cable Length : N 280mm/P 280mm Cable Size : 4 mm2 PV Size: 2384×1134×30 mm Packaging: 36 pcs / pallet 720pcs / 40HQ container
Learn More
TSM-NEG21C.20 675-700W Cell Arrangement : 132 Junction Box : IP68 rated Weight: 38.3KG Cable Length : 350/280mm Cable Size : 4 mm2 PV Size: 2384 ×1303× 35 mm Packaging: 33 pcs / pallet 594pcs / 40HQ container
Learn More
