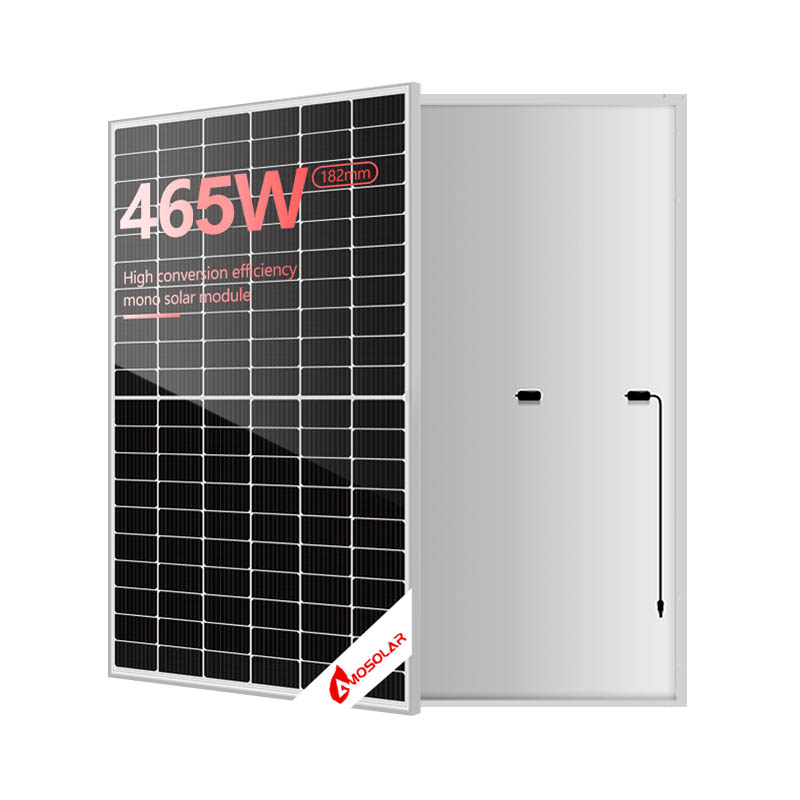

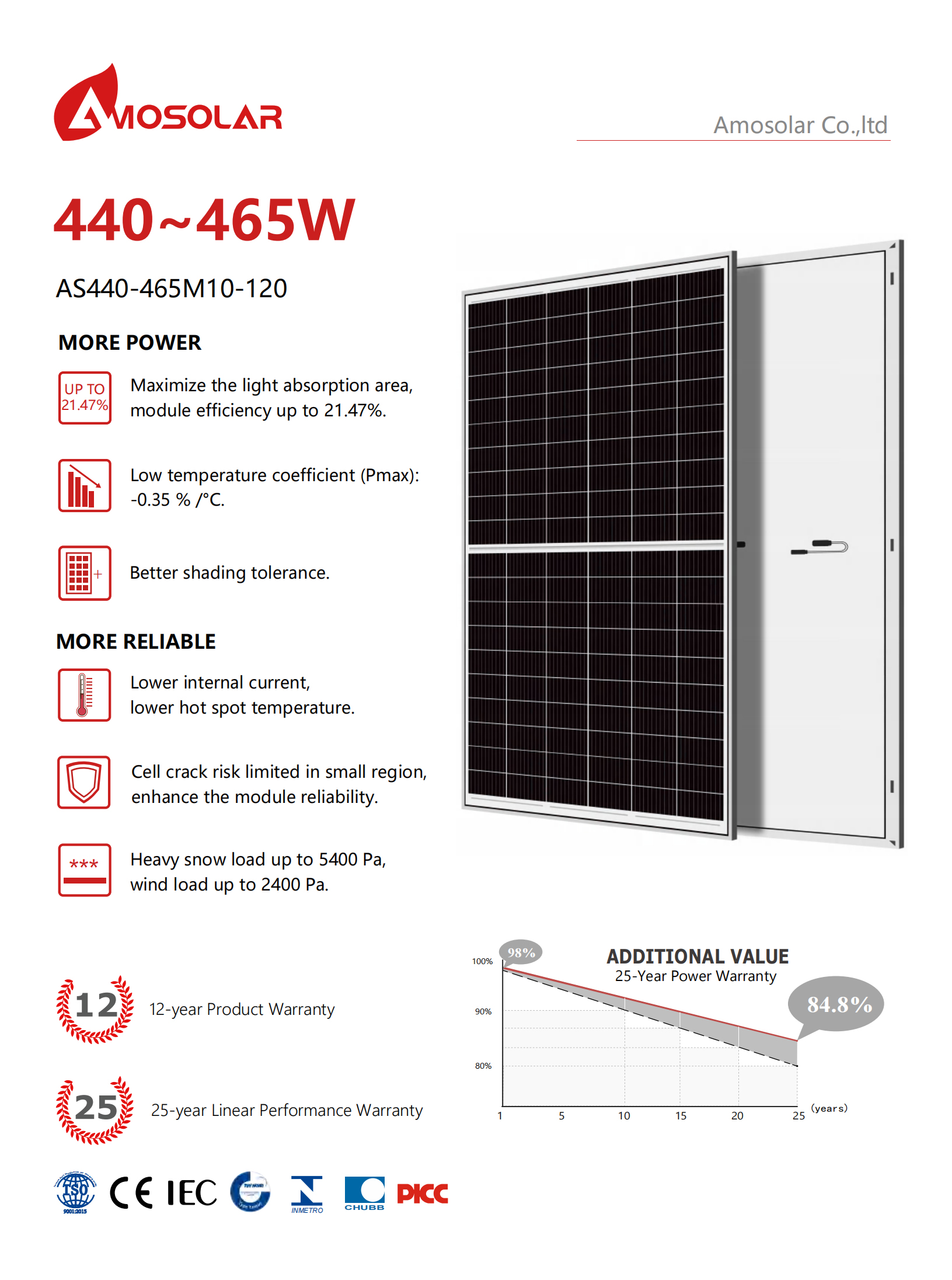

AS440-465M10-120
Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.
| Cell | Mono |
|
Rated Maximum Power |
465W |
| Maximum Efficiency | 21.47% |
|
Weight
|
23.0kgs±3%
|
|
Cells Type
|
Mono 182x91mm
|
|
Dimension(LxWxT)
|
1910±2mmx1134±2mmx30/35±1mm
|
|
Packaging
|
36pcs/pallet, 864pcs/40HQ container
|
440W-465W Half Cells Mono Solar Panel China Factory : With multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance.
Electrical Performance Parameters (STC Test)
|
Model |
AS440M10-120 |
AS445M10-120 |
AS450M10-120 |
AS455M10-120 |
AS460M10-120 |
AS465M10-120 |
| Rated Maximum Power at STC |
440W |
445W | 450W | 455W | 460W |
465W |
| Open Circuit Voltage (Voc) |
43.24
|
43.36 | 43.48 | 43.60 | 43.72 | 43.84 |
| Maximum Power Voltage (Vmp) | 34.70 | 34.90 | 35.10 | 35.30 | 35.50 |
35.70 |
| Short Circuit Current (Isc) | 13.18 | 13.24 | 13.30 | 13.36 | 13.42 | 13.48 |
| Maximum Power Current (Imp) | 12.70 | 12.77 | 12.83 | 12.91 | 12.97 | 13.03 |
| PV Module Efficiency (%) | 20.31 | 20.55 | 20.78 | 20.01 | 21.24 | 21.47 |
| Standard |
Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 |
|||||
Mechanical Parameters
Layout : 120(6x20)
Weight: 23.0KG
Cable Size : 4mm²（IEC)
Packaging: 36 pcs / pallet
864 pcs / 40HQ container
AS390-420M10-108 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 420W Maximum Efficiency 21.51% Weight 21.0kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ container
Learn More
AS485-505M10-132 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 515W Maximum Efficiency 21.69% Weight 24.5kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2094±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 682pcs/40HQ container
Learn More

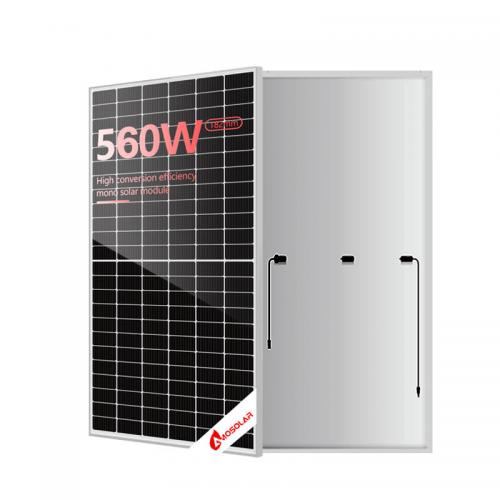

AS530-560M10-144 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 560W Maximum Efficiency 21.67% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
JAM54D41 430-455/LB Cell Arrangement : 108 (6 X 18) Junction Box : IP68, 3 diodes Weight: 22KG Cable Length : 300mm(+) / 400mm(-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 1762X 1134 X 30 mm Packaging: 36 pcs / pallet 936pcs / 40HQ container
Learn More
72HC-BDVP 535-555W Cell Arrangement : 144 (6 X24 ) Junction Box : IP68, 3 bypass diodes Weight: 31KG Cable Length : 500 mm (19.7 in) (+) / 350 mm (13.8 in) (-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 2278X 1134 X 30mm Packaging: 36pcs / pallet 720pcs / 40HQ container
Learn More
Amosolar lead acid battery:Better operations across temperature extremes，Slower discharging for a longer lifespan MODEL NUMBER 6-GFM(G)-250 CAPACITY(AH) 250 NORMINAL VOLTAGE(V) 12V SIZE(L×W×H×TH) 520×268×220×225 mm BATTERY TYPE GEL CYCLE LIFE 1500times
Learn More
66HL4M-BDV 605-630 Watt Cell Arrangement : 132 (66 X2 ) Junction Box : IP68, 3 bypass diodes Weight: 32.4KG Cable Length : 500 mm (19.7 in) (+) / 350 mm (13.8 in) (-) Cable Size : 4 mm2 (IEC), 12 AWG (UL) PV Size: 2382X 1134 X 30mm Packaging: 36pcs / pallet 720pcs / 40HQ container
Learn More
TSM-NEG19RC.20 580-605W Cell Arrangement : 150 Junction Box : IP68 rated Weight: 33.7KG Cable Length : N 280mm/P 280mm Cable Size : 4 mm2 PV Size: 2384×1134×30 mm Packaging: 36 pcs / pallet 720pcs / 40HQ container
Learn More
