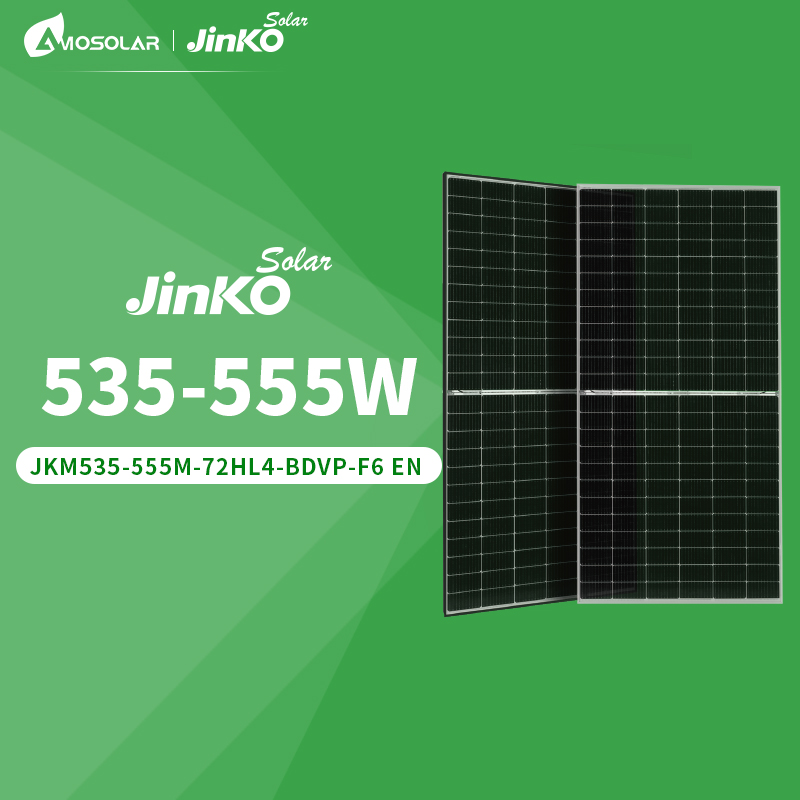

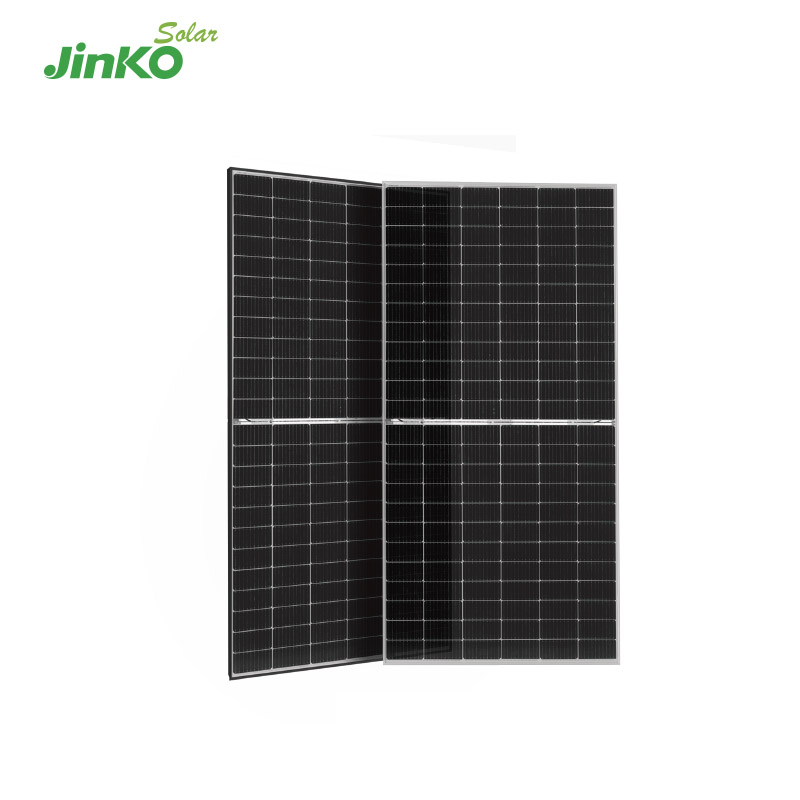

Jinko 182 High Power Mono PERC Module 535W 540W 545W 550W 555W Solar Panel Original Fatory

555W Solar Panel 144
555W Solar Panel 144

Jinko 182 High Power Mono PERC Module 535W 540W 545W 550W 555W Solar Panel Original Fatory

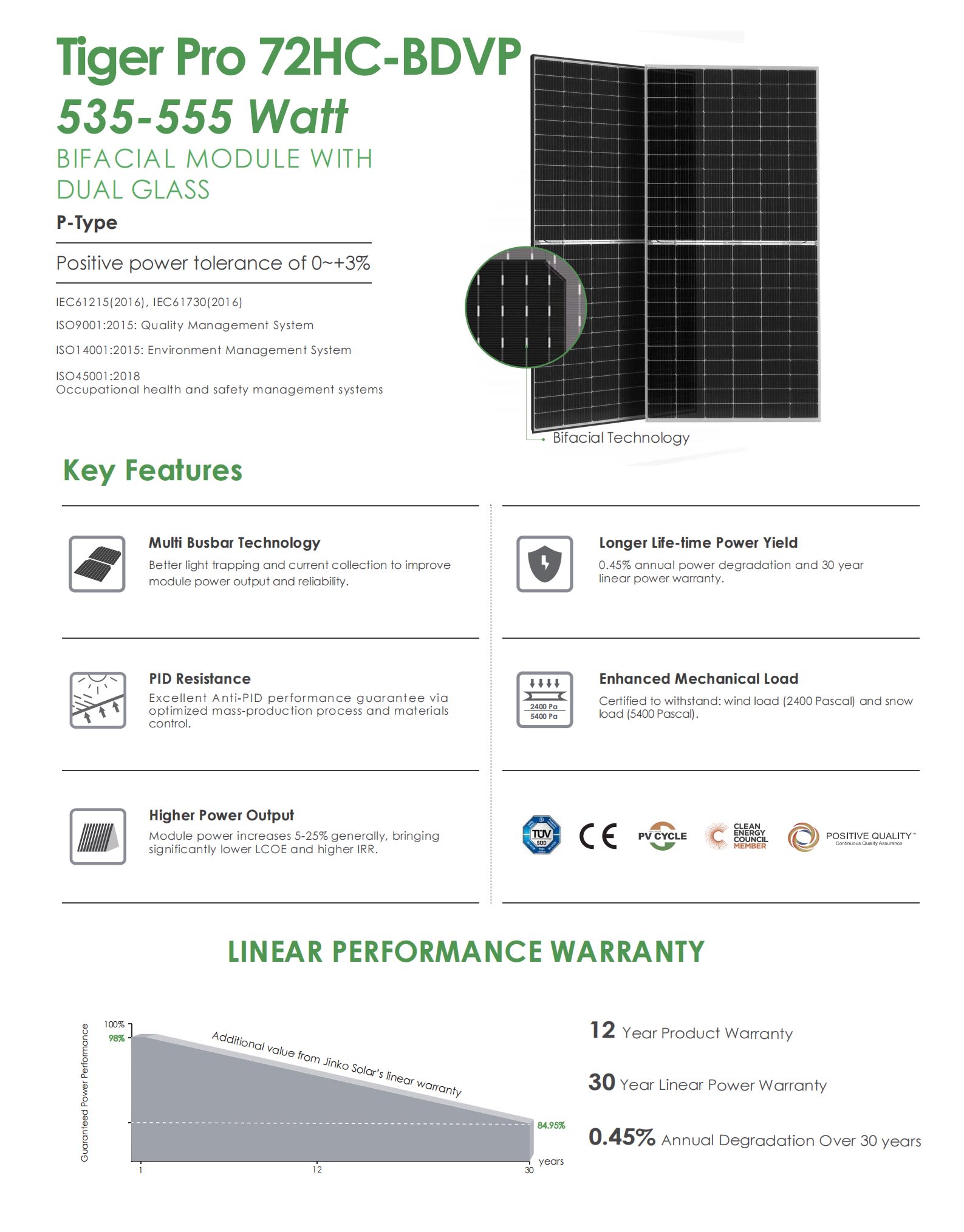

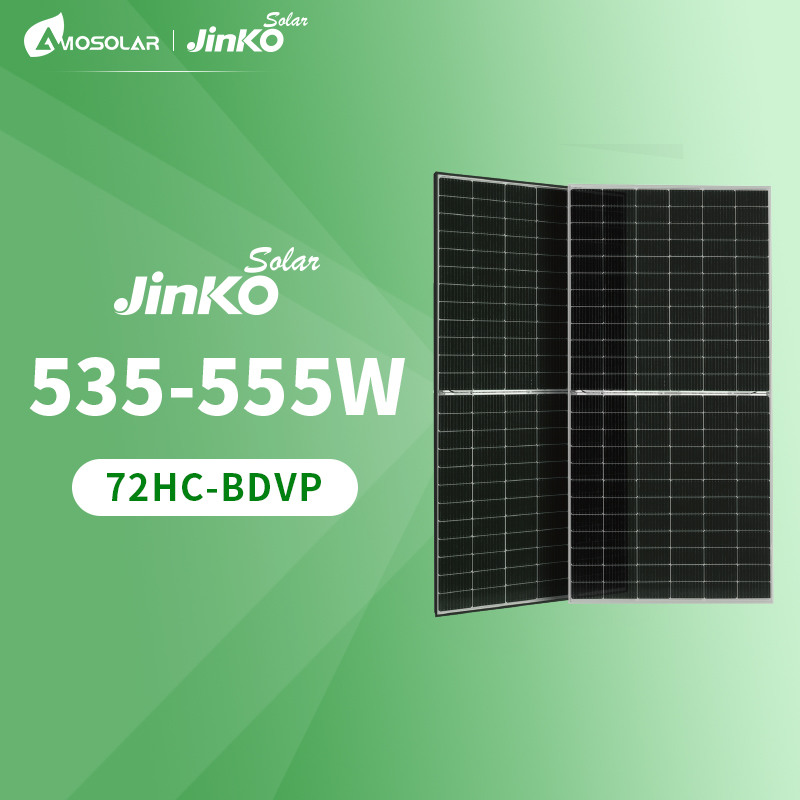

72HC-BDVP 535-555W





Cell Arrangement :      144 (6 X24 )

Junction Box :            IP68, 3 bypass diodes


Weight:                      31KG


Cable Length :             500 mm (19.7 in) (+) / 350 mm (13.8 in) (-)


Cable  Size :                4 mm2 (IEC), 12 AWG (UL)


PV Size:                      2278X 1134 X 30mm


Packaging:                 36pcs / pallet   720pcs / 40HQ container






topcon solar panelElectrical Performance Parameters (STC Test)



Model JKM535M-72HL4-BDVP JKM540M-72HL4-BDVP JKM545M-72HL4-BDVP JKM550M-72HL4-BDVP JKM555M-72HL4-BDVP
Rated Maximum Power at STC 535W 540W 545W 550W 555W
Open Circuit Voltage (Voc) 49.54 49.73 49.92 50.11 50.30
Maximum Power Voltage (Vmp) 40.94 41.13 41.32 41.51 41.70
Short Circuit Current (Isc) 13.83 13.89 13.95 14.01 14.07
Maximum Power Current (Imp) 13.07 13.13 13.19 13.25 13.31
PV Module Efficiency (%) 20.71 20.90 21.10 21.29 21.48
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5
